Test loads: from 0.3 to 250 kgf (From 2.940 to 2452 N) Vickers ISO 6507 / ASTM E-384 - Knoop ISO 4545: HV0,3 - HV0,5 - HV1 - HV2 - HV2,5 - HV3 - HV5 - HV10 - HV15 - HV20 - HV30 - HV50 - HV100 / HK0,3 - HK0,5 - HK1 Rockwell ISO 6508 / ASTM E-18: HRA - HRB - HRC - HRD - HRF - HRG - HRL - HRM - HRR / HRN - HRT Brinell ISO 6506 / ASTM E-10: HB 30 - HB 10 - HB 5 - HB 2,5 MPa (F/D2)
|

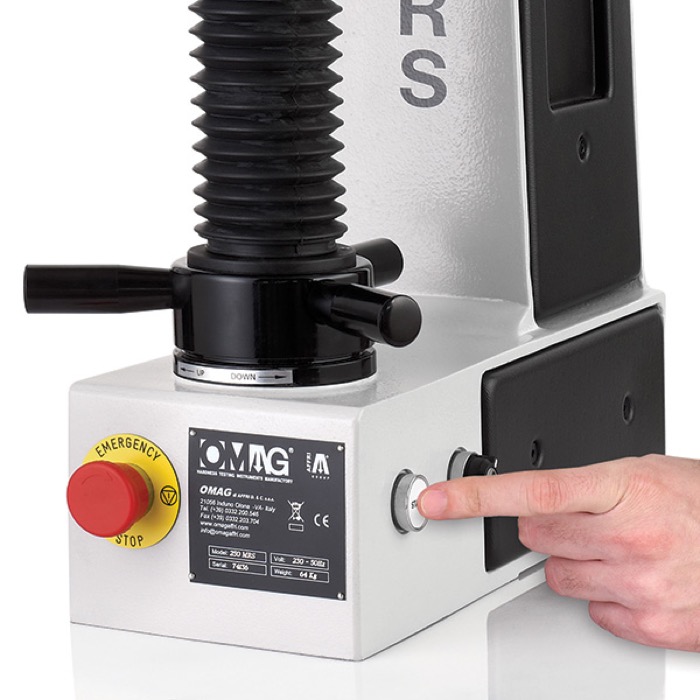

ONE BUTTON MEASUREMENTS |
|
INDENTER AND CLAMPING HOOD STROKE |
Just press one button and the hardness tester's head moves down to make contact with the sample's surface, clamps the piece, applies the force, makes the indentation and goes back upwards. Within seconds results appear. For Vickers and Knoop indentations, just place the camera in reading position and the indent is automatically measured. |
|

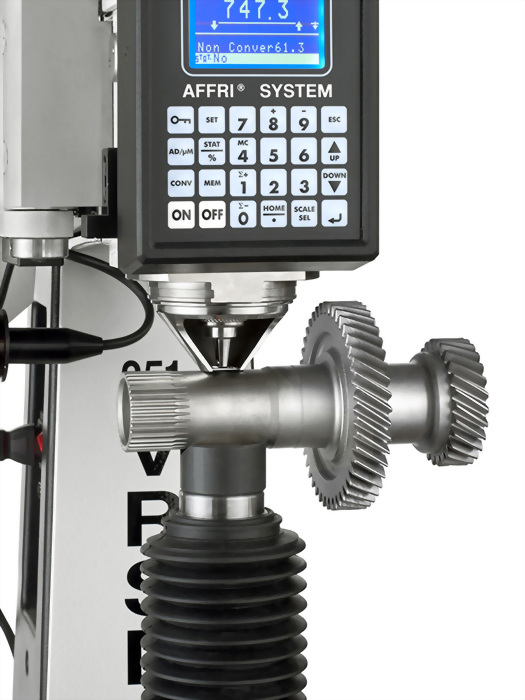

When testing unstable samples or deflective parts, the AFFRI System will follow the sample without loosing contact thank's to its 50 mm stroke for indenter and clamping hood. Easy and fast hardness measurements on pieces with different thicknesses without acting on tester head or elevating screw. |
CLOSED LOOP (PAT. AFFRI) |
|
REPEATABILITY & REPRODUCIBILITY |
Load forces are applied through load cells and controlled in "Closed Loop" with a frequency of 1 khz, assuring perfect linearity in every range. Results are not affected by any structural deflection, misalignment, vibration or problems associated with dead weight systems on traditional testers. |
|
Accurate measurements on the first test, even in extreme conditions, eliminate the need for repeated tests. The R&R data is at the top of its class. |
AUTO INDENT READING |
|
CLAMPING SYSTEM (PAT. AFFRI) |

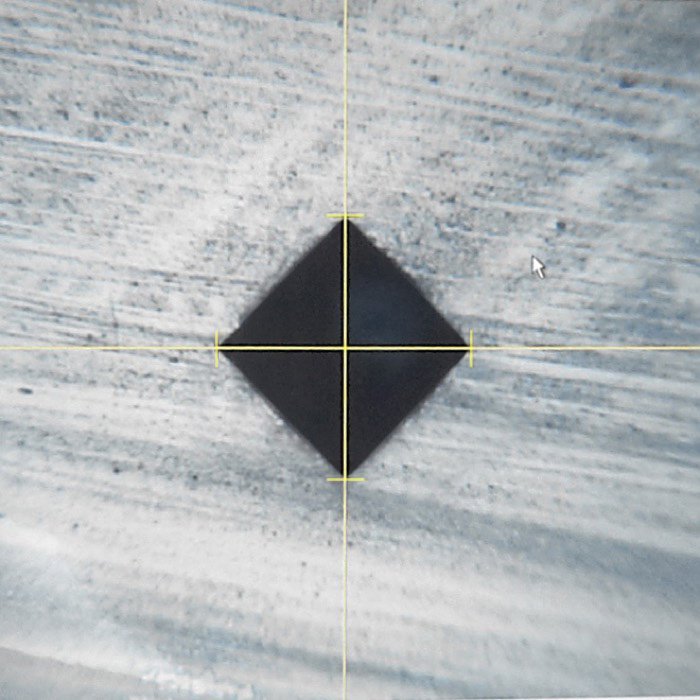

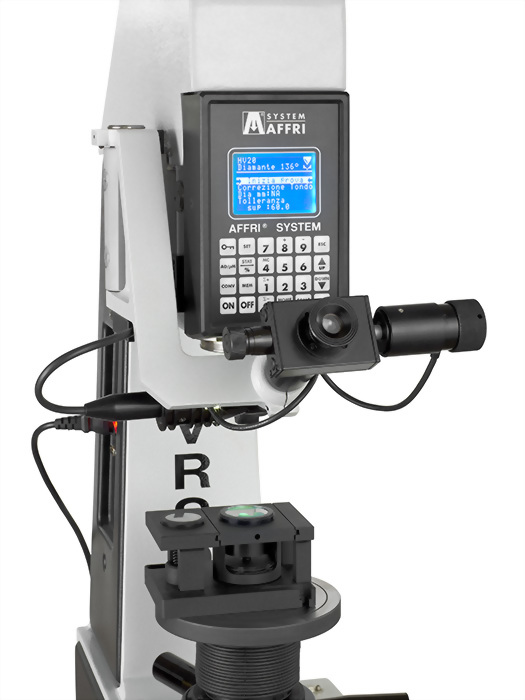

Thanks to the CCD high definition camera and to the AFFRI software, the indent reading process is automatic and assures absolute accuracy even if the samples surface isn't perfect. From perfectly polished to rough and etched samples, the indentation auto-detection allows measurements on a variety of sample surfaces. |
|
Secure contact with the specimen is always mantained, even in the unlikely event of any specimen movement during the operation cycle. The clamping system assures perfect stability of any test piece throughout the test cycle, even if it's oiled, rusty or dirty. |
X/Y TABLE |
|
SOFTWARE |

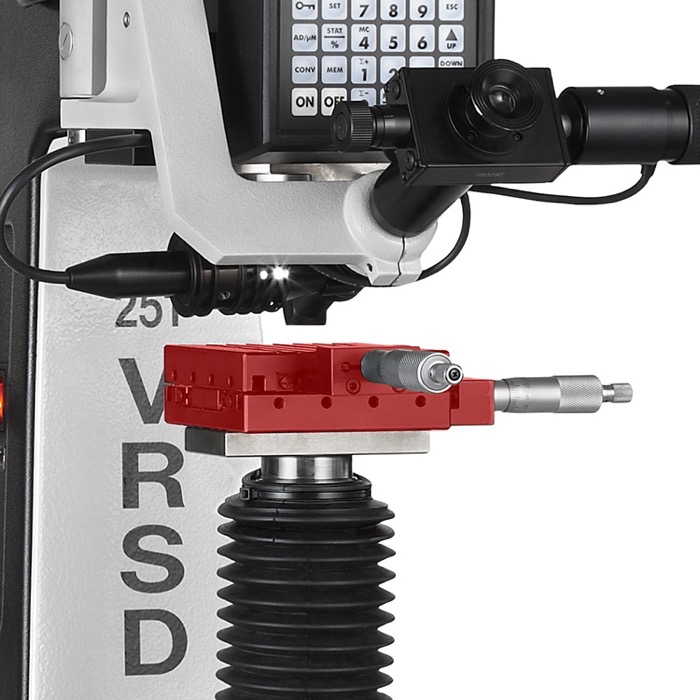

Sliding table 100x100 mm with 25 x 25 mm X/Y stroke and 10 μm step, for an easy and accurate positioning of the sample. |
|

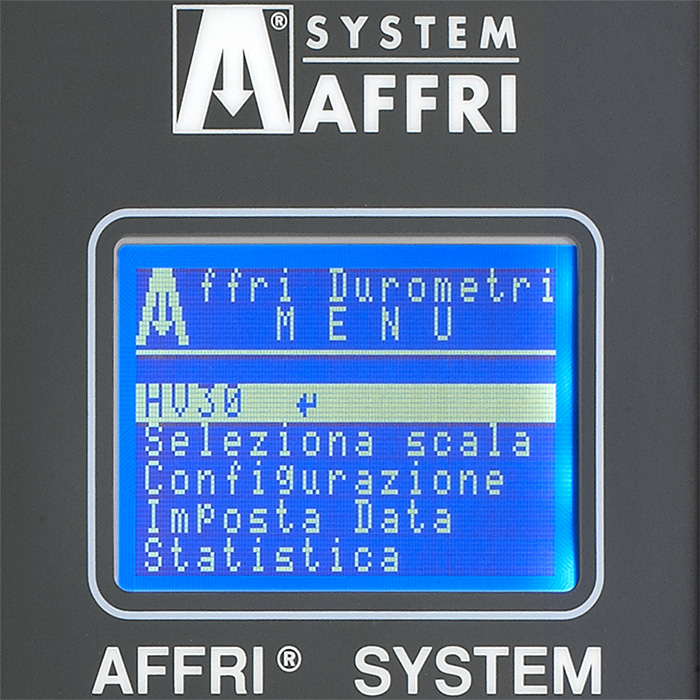

AFFRI analyse system with fast and easy scales selection and test settings. Results and live statistics. Storage of data and test sessions. |

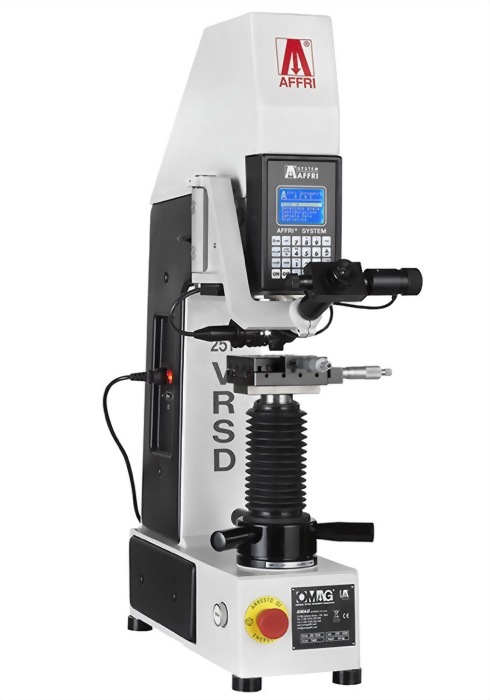

251 VRSTV/VRSD/VRSA
|

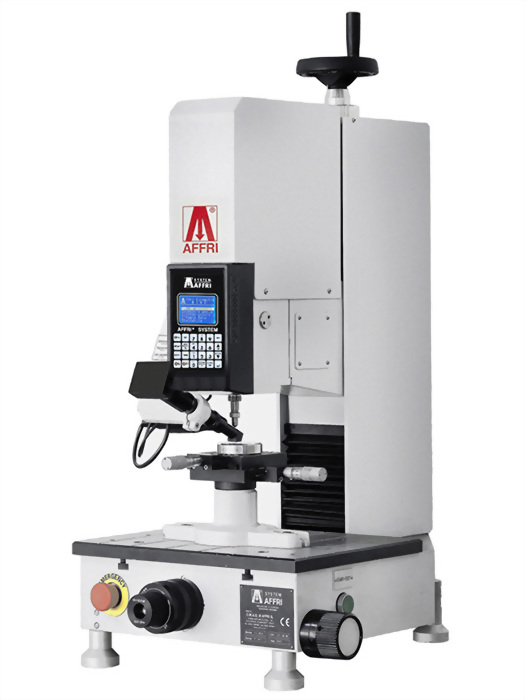

270 VRSTV/VRSD/VRSA
|
770 VRSTV/VRSD/VRSA
|
|
Standards
|
EN-ISO 6506-2 / EN-ISO 6507-2 / EN-ISO 6508-2 / EN-ISO 2039 / EN-ISO 868 / ASTM E-18 / ASTM E-10 / ASTM E-2240 / ASTM E-348
|
||
XY table
|
----
|
330x390 mm
|
|
Indenter and clamping hood stroke
|
0/50 mm motorized
|
||
Vertical head stroke
|
----
|
0/380 mm motorized
|
0/700 mm motorized
|
Elevating screw stroke
|
0/215 mm
|
----
|
|
Depth capacity
|
190 mm
|
||
Reading
|
VRSTV: Automatic and semi-automatic through CCD camera and software (Computer as optional)
VRSD: Semi-automatic with encoder VRSA: Semi-automatic with drum scale |
||
Preload
|
29.4 - 98.1 N (3 - 10 kgf)
|
||
Test loads
|
VRSTV/VRSD/VRSA Vickers - Knoop: 9.807 - 19.60 - 29.42 - 49.03 - 98.07 - 147.1 - 196 - 294.2 - 490.35 - 980.7 N (1 - 2 - 3 - 5 - 10 - 15 - 20 - 30 - 50 - 100 kgf) Rockwell: 588.4 - 980.7 - 1471 N (60 - 100 - 150 kgf) Superficial Rockwell: 29.42 - 147.1 - 294.2 - 441.3 N (3 - 15 - 30 - 45 kgf)
Brinell: 61.29 - 98.07 - 153.2 - 245.2 - 294.2 - 306.5 - 612.9 - 1226 - 1839 N (On request 2452 N)
Optional loads: 49 - 132 - 358 - 961 N (For plastics and rubbers as per EN-ISO 2039 std)
VRSTV-VM/VRSD-VM/VRSA-VM (Micro macro Vickers) Superficial Rockwell: 29.42 - 147.1 - 294.2 - 441.3 N (3 - 15 - 30 - 45 kgf)
Vickers - Knoop: 2.940 - 4.903 - 9.807 - 19.60 - 24.52 - 29.42 - 49.03 - 98.07 - 147.1 - 196 - 294.2 - 490.35 N
|
||
Feasible tests
|
Rockwell: HRC - HRA - HRD - HRB - HRF - HRG - HRL - HRM - HRR
Superficial Rockwell: HRN - HRT Brinell: HB30 - HB10 - HB5 - HB2.5 MPa (F/D2) Vickers - Knoop Shore A - D |
||
Accuracy
|
Better than 0.5 %
|
