Test loads: from 0,1 to 30 kgf (from 0,98 to 294,21 N) Vickers ISO 6507 / ASTM E-384: HV0,1 - HV0,2 - HV0,3 - HV0,5 - HV1 - HV2 - HV3 - HV5 - HV10 - HV20 - HV30 Knoop ISO 4545 / ASTM E-384: HK0,1 - HK0,2 - HK0,3 - HK0,5 - HK1
|
|
MOTORIZED MEASURING HEAD |
|
CLOSED LOOP (PAT. AFFRI) |
|

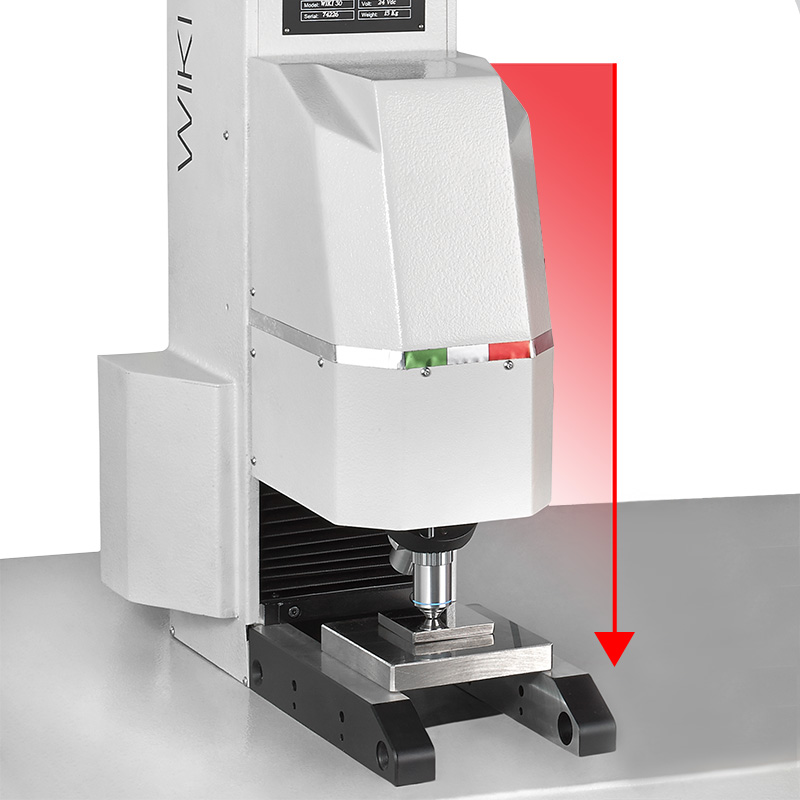

Just press one button and the head moves down, applies the force, makes the indentation, reads the indent and moves back upward. Fully motorized with 90 mm of vertical stroke.
|
|

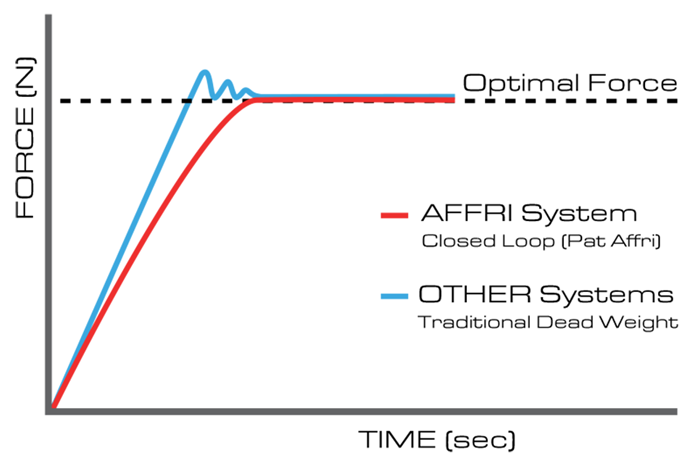

Closed loop load cells control load forces with a frequency of 1 khz, assuring perfect linearity in every range. Results are not affected by any structural deflection, misalignment or vibration.
|
|
MOTORIZED TURRET (INDENTER/OBJECTIVE) |
|
360° POSITIONING |
|

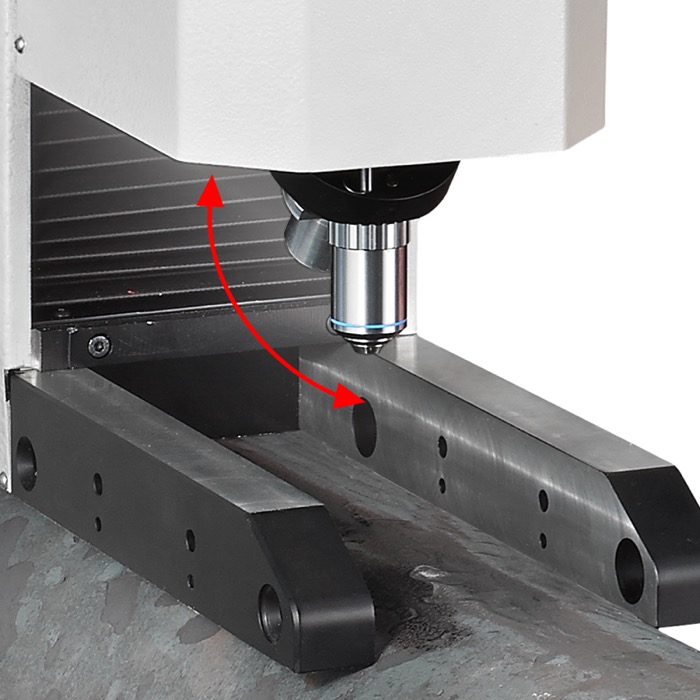

One slot for an indenter and one slot for an objective. Auto-rotating and auto-tool-switching for a complete automatic measurement cycle.
|
|

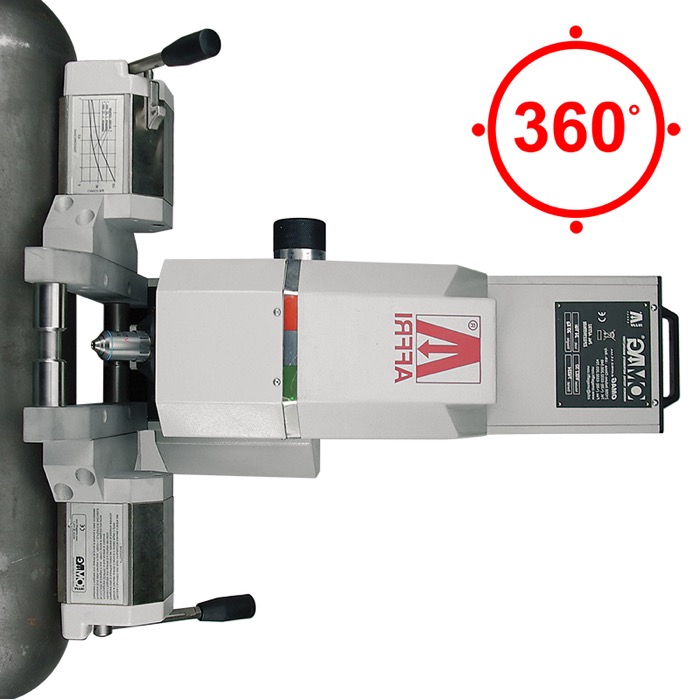

It is completely uninfluenced by direction so that it can operate up to 360° degrees of positioning, even upside down. Safe clamping on any surface, from round to flat, with self-allignment of the indenter with the measurement axis.
|
|
TOUCHSCREEN AND SOFTWARE |
|
AUTOFOCUS |
|

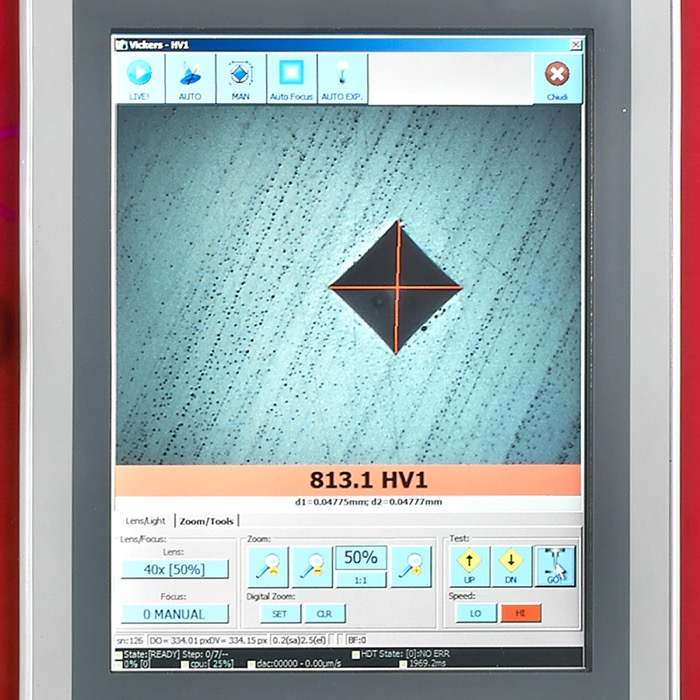

Powerful software for test cycle management and automatic indent reading. Wide settings parameters for measurement setup, image adjustments, statistics and data storage.
|
|

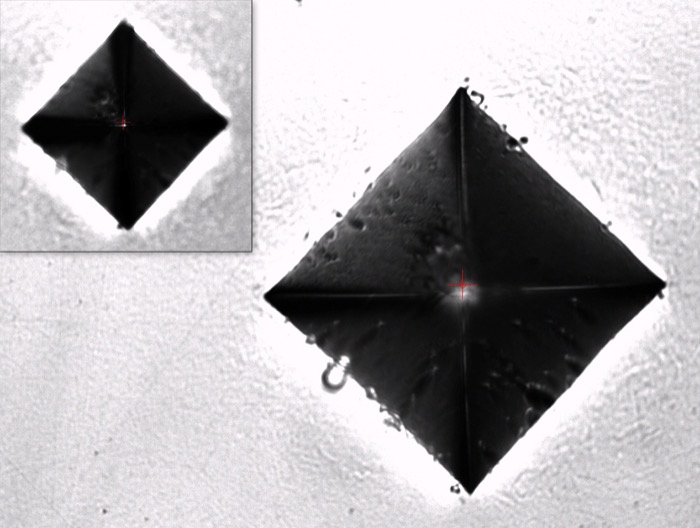

The Auto Focus performs an automatic focus adjustment for the selected optic with precise positioning at any magnification. This system reduces reading time thus assuring high reading accuracy.
|
|
MULTI INDENTATION |
|
BENCH TOP USE |
|

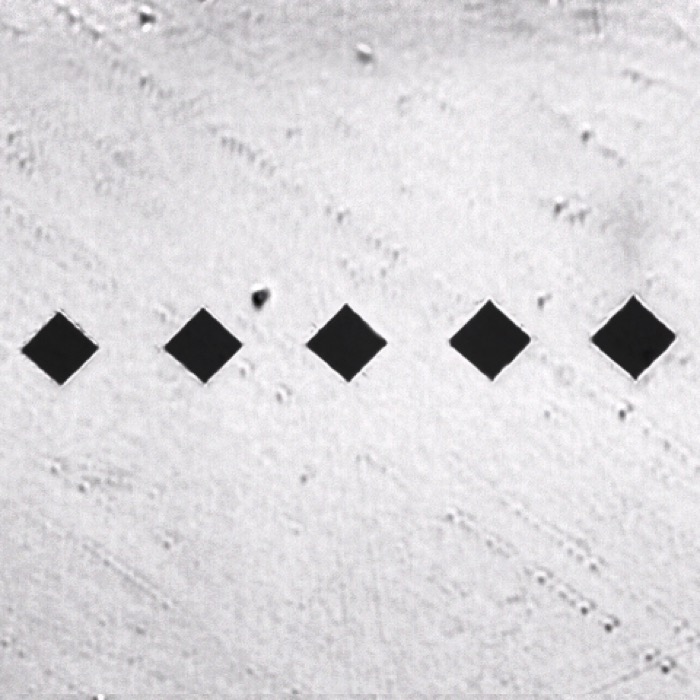

The indenter/objective turret slides horizontally for ca 5 mm. The system provides the ability to perform multiple inentations on one axis, with high positioning accuracy, without moving the tester. |
|
The portable tester WIKI 30 can be used as a conventional bench-top hardness tester for very high accuracy tests on small pieces. |
|

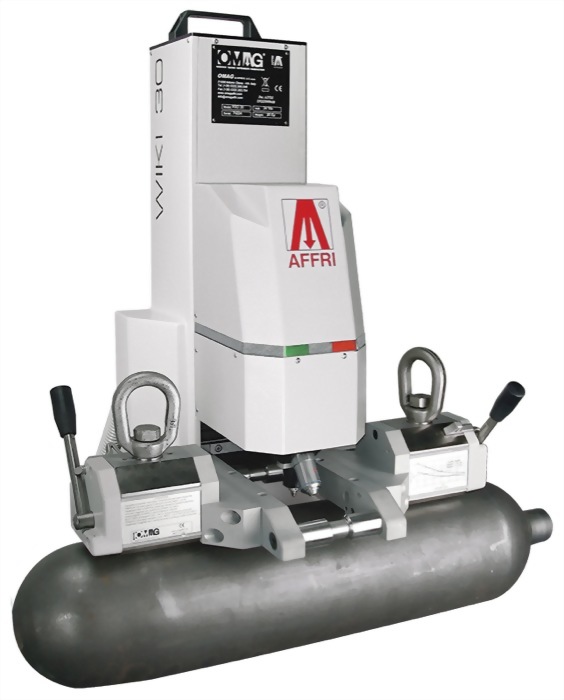

WIKI 30
|
|
|
Standards
|
DIN-EN-ISO 6506 / DIN-EN-ISO 6507 / DIN-EN-ISO 4545 / ASTM-E92 / ASTM 384 / JIS Z231
|
|
Horizontal head stroke
|
ca 5 mm
|
|
Vertical head stroke
|
0/90 mm motorized
|
|
Objectives
|
100X, 200X, 400X
|
|
Indenters
|
Vickers
|
|
Test loads
|
Vickers: 0.9807 - 1.961 - 2.942 - 4.903 - 9.807 - 19.61 - 29.42 - 49.03 - 61,29 - 98.07 - 147.1 - 152.98 - 196.14 - 245.17 - 294.21 N
(0.1 - 0.2 - 0.3 - 0.5 - 1 - 2 - 3 - 5 - 6.25 - 10 - 15 - 15.6 - 20 - 25 - 30 kgf)
|
|
Feasible tests
|
Vickers: HV0.1 - HV0.2 - HV0.3 - HV0.5 - HV1 - HV2 - HV3 - HV5 - HV10 - HV20 - HV30
|
|
Accuracy
|
Better than 0.1 %
|
