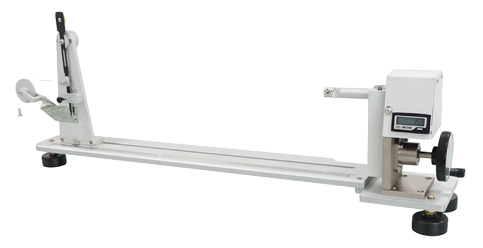

This test machine uses the characteristics of different length of yarn after twisting. Use the pointer or sensor to detect changes in the yarn to figure the twist value of the measured object. This is a very important reference data to the textile process.
Electric twist measuring machine with the latest F1C controller, Built-in with rally pretension data for user queries, can automatically determine the length of specimen.
The screen will displays real-time data during the test to let the users to grasp the status of the test, to do the statistical analysis through the test data after test.
1. Indicator: digital display
2. Speed: Manual control
3. Direction: Manual control S or Z
4. Weight Sets: 0.3gx1, 0.5gx1, 0.8gx1,1gx1, 2gx1,3gx1, 5gx1 each ,10gx2
5. Specimen Size: 5~52 cm [Max. Distance of common use 10"(25.4 cm) and 20"(50.8 cm) or indicated.
6. Basic Load: 1.2 g
7. Power: N/A
8. Dimension: 81×14×32cm(W×D×H)
9. Weight: 11 kg
