Discoloration Meter (Simple type)

Model : YM-E0302

  • Description

A.  Introduction:

The YM-E0302 Discoloration Meter use two 15W light pipes as test irradiation source to see sample change condition through Ultraviolet ray.

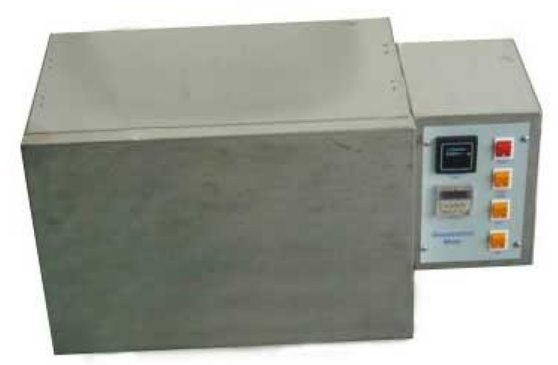

B.  Photo reference:


C.  Specification:


1.   Inner Chamber Size: 50×30×30 cm (W×D×H)

2.   Timer:0~9999Hours, manual setting, digital display, automatically stop

3.   UV irradiance level:Two pieces of 15W light pipe

4.   Accessories:One piece of shelf. Height adjustable according to the size of specimen. Generally the distance between specimen and light pipe is around 15~25cm

5.   Internal material:Stainless Steel SUS #304

6. Dimension:68×34×37 cm (W×D×H)

7. Voltage:Single phase 110V/60HZ or 220V/50HZ

8. Weight:12 kg。
