Control with computer |
USB transmission |
|
|
|
|
●Can use Yang-Yi software to do different test and programmable control. ●Available for laptop or PC.
|
|
●Transmission by USB, compatible different computer
●Avoid machine instant high current to damage computer.
|
High accuracy servo motor |
|
Accurate ball screw transmission |
|
|
|
●Accurate speed control, adjustable upon request ●Stable operation even under extremely slow speed
Tip: Traditional motor (button control) or hydraulic system is cheaper but the speed is unstable, worse accuracy to position. The testing data is inappropriate; moreover, the hydraulic system has oil leakage, heating, noise and other problems. The maintenance is costly.
|
|
●High accuracy to position ●High rigidity, stability, long lifetime
|
Loadcell |
||
![]() |
|
![]() |
YS-S 5 ~20 kN |
|
YS-L 20~500 kN |
●Standard accuracy±1% (Reading value 5~95%), ±0.5% is optional. ●Software equipped with multi-calibration functions to increase accuracy. ●Data record in the transducer, no need to recalibrate after switch.
|
Video
Fastener / Metal Test |
||||
![]() |
![]() |
![]() |
![]() |
|
Tapping screw- Tensile |
Withdrawal/pull-through |
Bolt Tensile/Proof Load |
Rod /Wire Tensile |
|
Plastic & Rubber Test |
Spring Test |
|||
![]() |
![]() |
![]() |
![]() |
![]() |
Tensile(Rubber) |
Tensile(Hard plastic) |
3-point Bending |
Tension |
Compression |
Aadhesive & Peeling Test |
Clothing Test |
|||
![]() ![]() |
![]() ![]() |
![]() |
![]() |
|
180 deg. |
90 deg. |
Tensile (Wave Grip) |
Puncture |
|
Other Test |
Accessories |
|||
![]() |
![]() ![]() |
![]() |
![]() |
![]() |
Tensile-Webbing |
String / Thread |
Friction |
Pneumatic Grips |
Biaxial table |

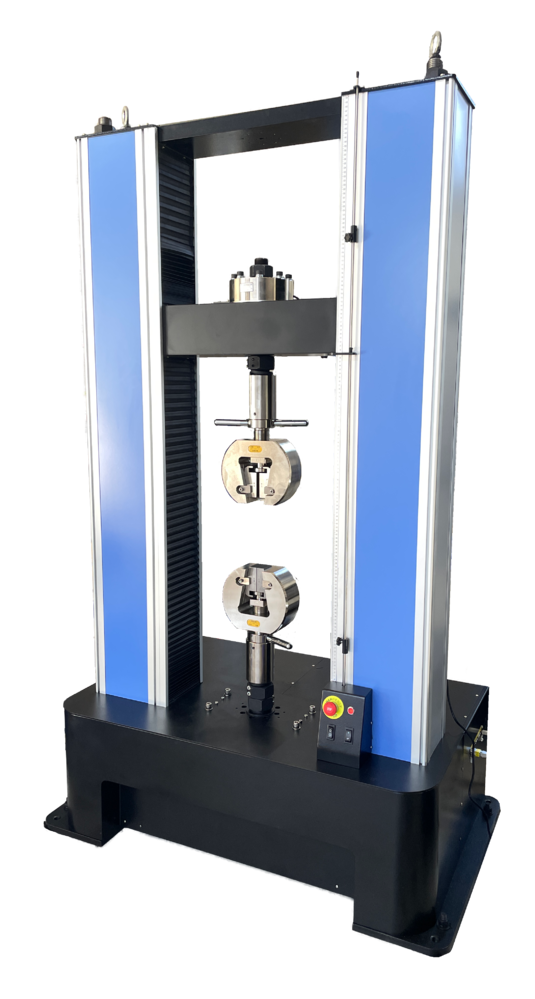

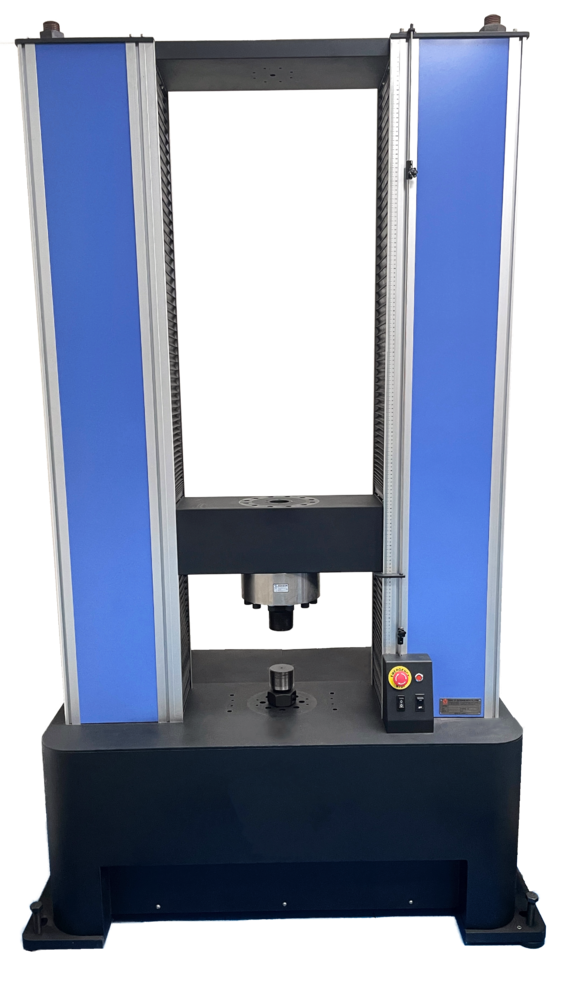

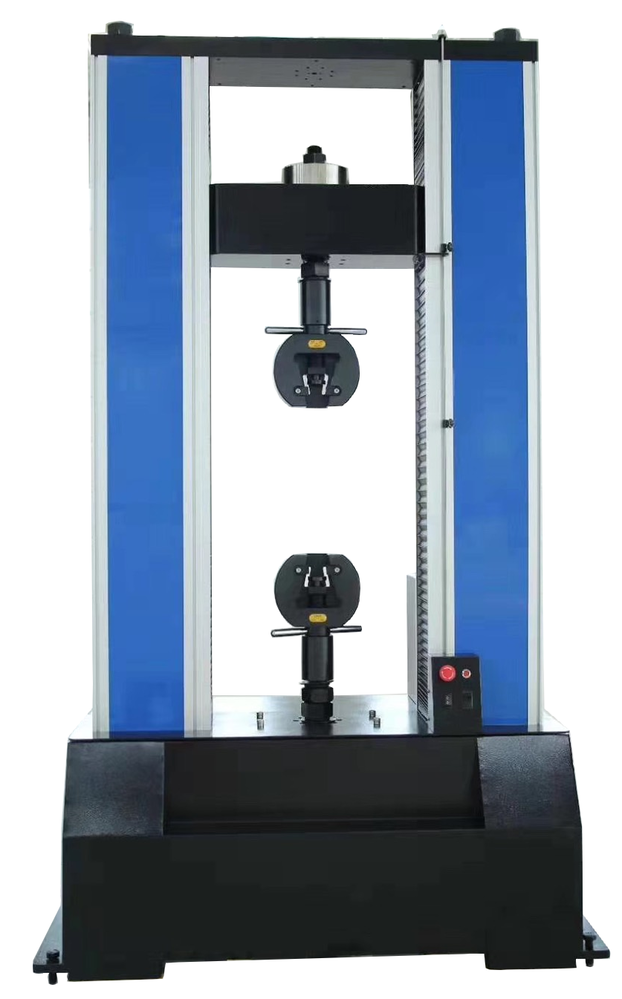

These series machine is large, please contact us to discuss the test method and specimen.
Model |
H61 |
H55 |
H53 |
H52 |
H51 |
Capacity(kN) |
1000 |
500 |
300 |
200 |
100 |
Stroke(mm) |
1,100 (exclude grips) |
||||
Space(mm) |
Ø550 |
||||
Load Resolution |
1/10,000 (Max1/200,000) |
||||
Stroke Resolution(mm) |
0.001 |
||||
Motor |
AC Servo motor |
||||
Speed(mm/min) |
0.001~200 |
0.001~300 |
0.003~375 |
||
Width(mm) |
1,800 |
1,570 |
1,240 |
1,240 |
1,200 |
Depth(mm) |
1,400 |
880 |
680 |
680 |
650 |
Height(mm) |
3,000 |
2,600 |
2,200 |
2,200 |
2,200 |
Weight(kgf) |
4,000 |
1,200 |
1,200 |
1,200 |
800 |
Sampling Rate (Hz) |
500(Max.) |
||||
Power Supply(A) |
100A |
50 |
20 |
20 |
15 |

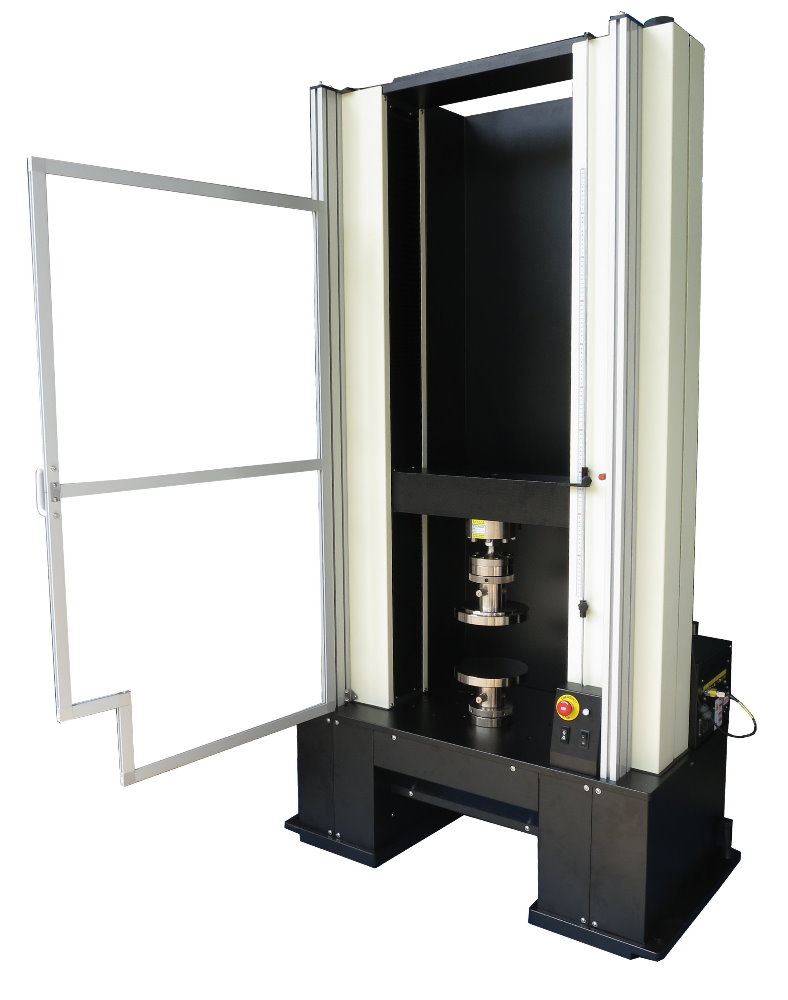

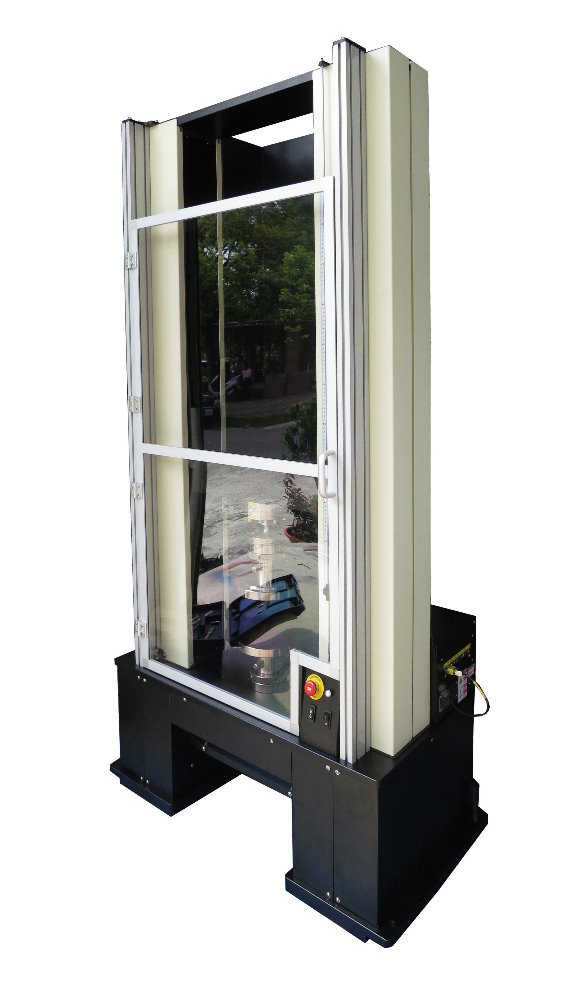

Protect door(Optional) It can prevent the broken specimen to hurt operator. |
|
![]() |
![]() |
