Test loads: from 1 to 250 kgf (From 9,807 to 2452 N)
|
|

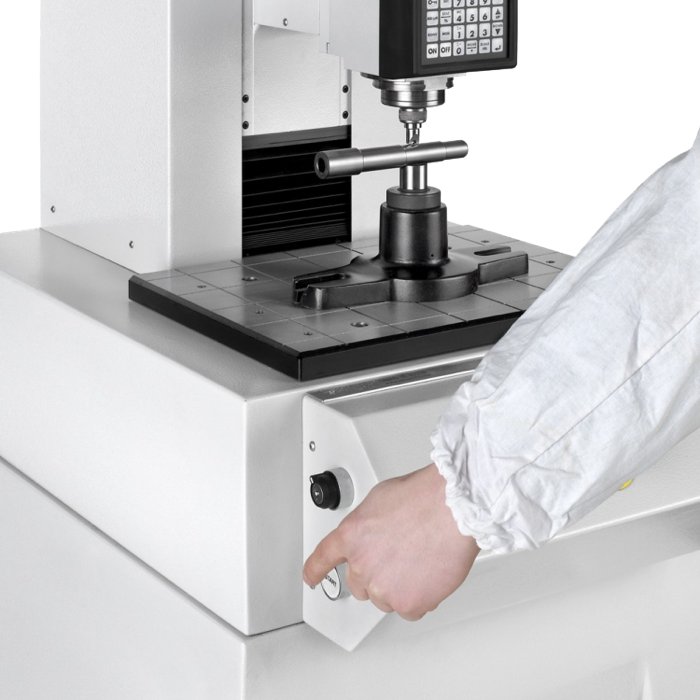

ONE BUTTON MEASUREMENTS |
|

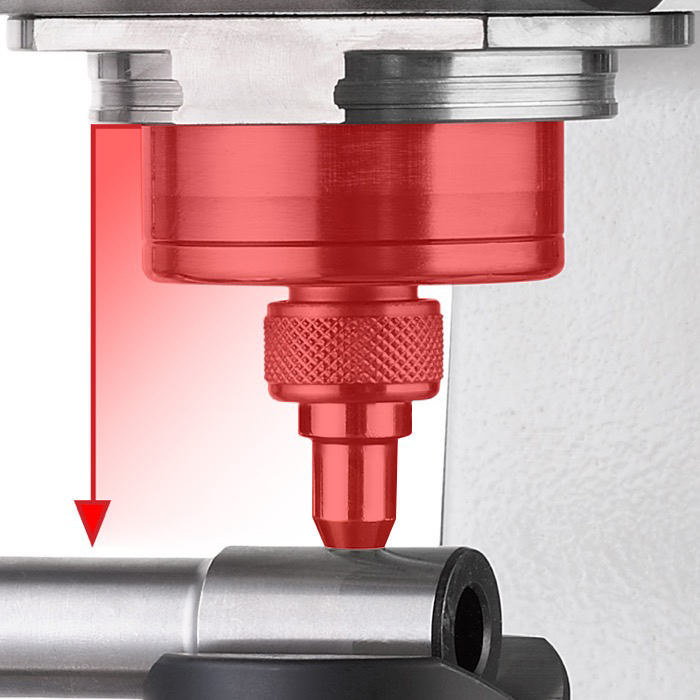

INDENTER STROKE |
|
Just press one button and the hardness tester's head moves down to make contact with the sample's surface, locking it. The hardness test cycle will automatically begin in automatic succession without breaching a phase. Within seconds results appear. |
|
When testing unstable samples or deflecting parts, the AFFRI System will follow the sample without losing contact thanks to its 50 mm stroke for indenter and clamping hood. Easy and fast hardness measurements on pieces with different thicknesses without acting on tester head or elevating screw. |
CLOSED LOOP TECHNOLOGY
(PAT. AFFRI)
|
|

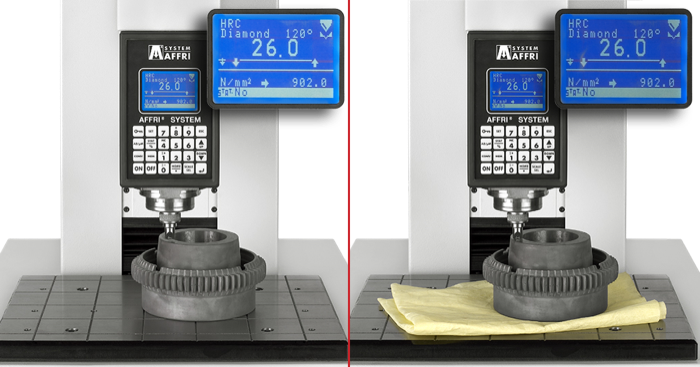

REPEATABILITY & REPRODUCIBILITY |
|
Load forces are applied through load cells and controlled in "Closed Loop" with a frequency of 1 khz, assuring perfect linearity in every range. Results are not affected by any structural deflection, misalignment or vibration. |
|
Accurate measurements on the first test, even in extreme conditions, eliminate the need for repeated tests. The R&R data is at the top of its class. |
|

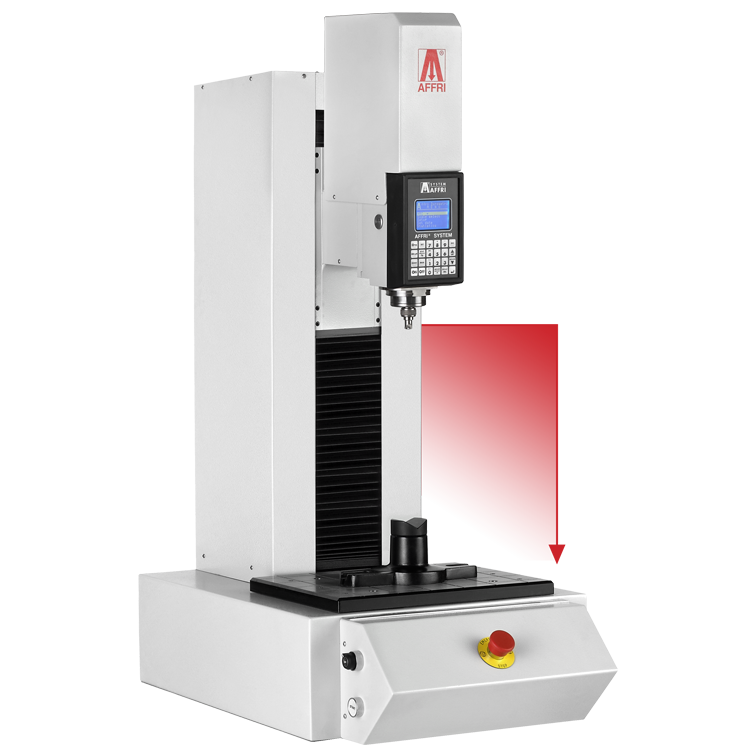

MOTORIZED TESTER'S HEAD |
|

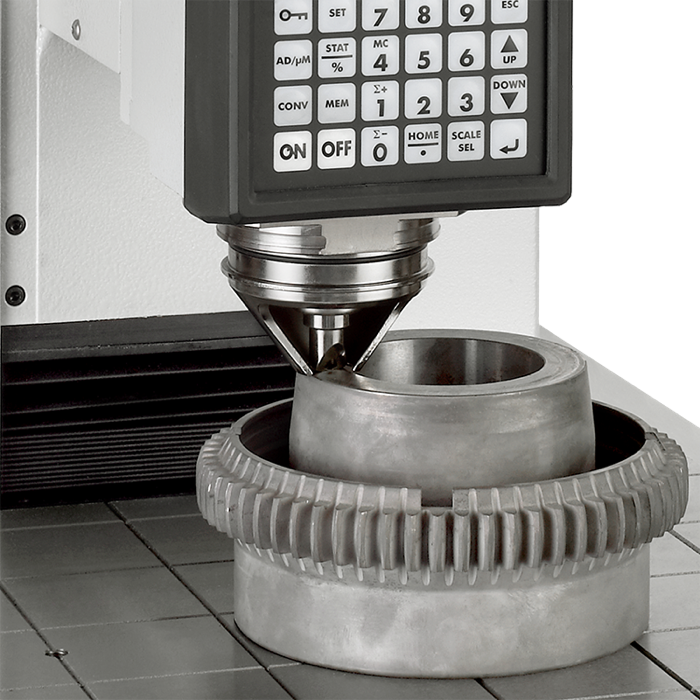

CLAMPING SYSTEM (PAT. AFFRI) |
|
Automatic movement with automatic stop when contact is made with samples. Total of 700 mm of motorized vertical stroke. The approach of the head moving to the piece as opposed to the piece moving to the head allows for more accurate, stable and safe measurements.
|
|
Secure contact with the specimen is always maintained, even in the unlikely event of any specimen movement during the operation cycle. The clamping system assures perfect stability of any test piece throughout the test cycle, even if it's oiled, rusty or dirty.
|
|

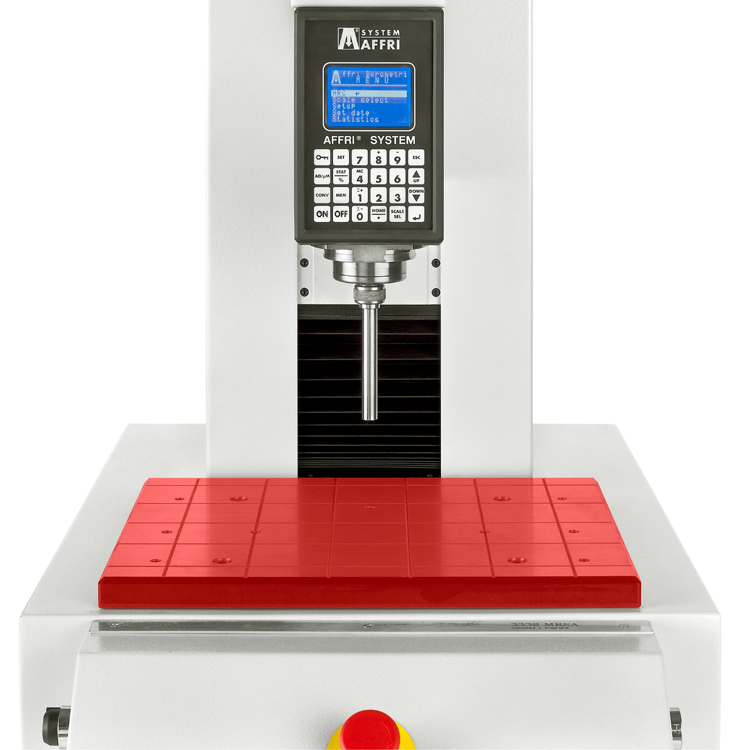

LARGE BASE |
|
SOFTWARE |
|
The 3332 MRS’s wide work table base is capable of bearing masses beyond 1000 kg which allows for steady hardness measurements on bulky or irregular pieces. It also offers a comfortable working base for small pieces. |
|
The pre-installed software controls the whole instrument during the entire cycle avoiding operator errors. Powerful analysis system with easy and fast test settings, live statistics and graph. Data and test sessions storage. |
|
|
250 MRS |
3332 MRS |
3332 MRSA |
3302 MRSA |
|
Standards |
EN-ISO 6506-2 / EN-ISO 6507-2 / EN-ISO 6508-2 / EN-ISO 2039 / EN-ISO 868 / ASTM E-18 E-10 / ASTM E-384 / ASTM E-2240 / JIS |
|||
|
X-Y Table |
---- |
330x390 mm |
||
|
Indenter and clamping-hood stroke |
0/50 mm |
---- |
0/50 mm |
|
|
Vertical head stroke |
---- |
0/300 mm |
0/500 mm motorized (On request 0/700 mm) |
|
|
Elevating screw stroke |
0/215 mm |
---- |
||
|
Depth capacity |
190 mm |
200 mm |
||
|
Preload |
29.4 - 98.1 N (3 - 10 kgf) |
|||
|
Force range |
Rockwell: 588.4 - 980.7 - 1471 N (60 - 100 - 150 kgf) Superficial Rockwell: 29.42 - 147.1 - 294.2 - 441.3 N (3 - 15 - 30 - 45 kgf)
Brinell: 49.03 - 61.29 - 98.07 - 153.2 - 245.2
- 294.2 - 306.5 - 612.9 - 1226 - 1839 N (On request 2452 N) Vickers - Knoop: 9.807 - 29.42 - 49.03 - 98.07 - 147.1 - 196 - 294.2 - 490.35 - 980.7 N (1 - 3 - 5 - 10 - 15 - 20 - 30 - 50 - 100 kgf) Optional tests: 49 - 132 - 358 - 961 N (For plastics and rubbers as per EN-ISO 2039 std) Shore A - D
|
|||
|
Feasible tests |
Rockwell: HRC - HRA - HRD - HRB - HRF - HRG - HRL - HRM - HRR Superficial Rockwell: HRN - HRT HBWT Brinell: HB30 - HB10 - HB5 - HB2.5 MPa (F/D2) Vickers - Knoop (Only indentation): HV1 - HV3 - HV5 - HV10 - HV15 - HV20 - HV30 - HV50 - HV100 Shore A - D
|
|||
|
Accuracy |
Better than 0.5 % |
|||
