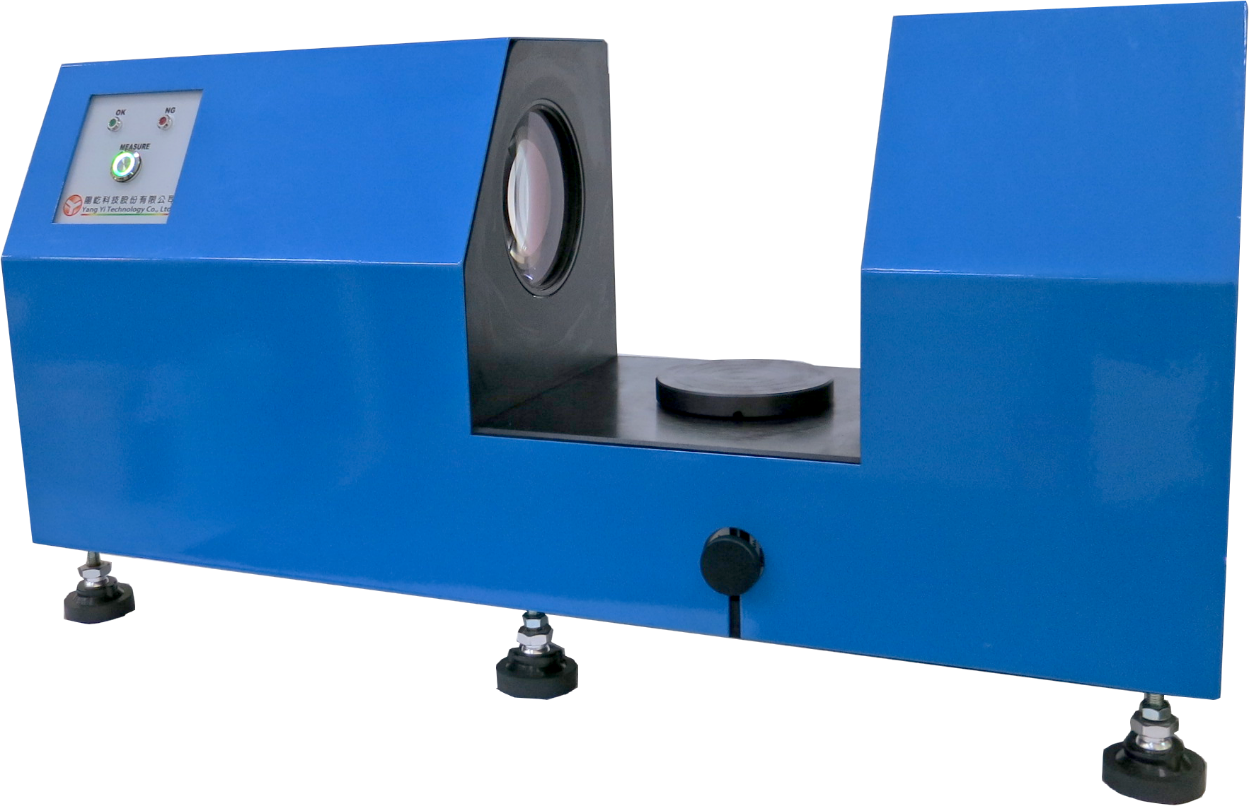

Innovative rotary inspection table, especially for columns that can 360° inspection (screw, nut, bolt), reduce effect from polarized light & phantom and enhance inspection accuracy.
|
Specifications |
|
|
Serial |
YM-V0201 |
|
Range |
60× |
|
Depth of Field |
16 mm |
|
Lens |
Telecentric Lens |
|
Light Type |
Telecentric Parallel |
|
Light Adjustment |
Digital Control |
|
CCD camera |
Black & white 5million pixels |
|
Adjustable Stroke |
±21mm |
|
Accuracy |
7 μm |
|
Resolution |
1 μm |
|
Repeatability |
3μm |
|
Dimension |
LxWxD 700 x 250 x350 mm |
|
Weight |
30 kgf |
|
Power Supply |
AC 100~240 V |
|
Image Transmission |
USB 3.0 |
|
Mode |
Setting Mode |
|
Manual Measurement |
P |
|
System |
32/64 bit |
|
Movable Table |
P |
|
One-button Measurement |
P |
|
Chinese/English Switchable |
P |
