A. Introduction:
This tester uses oil pressure to break specimen through rubber film to obtain specimen break strength value. Bursting resistance strength is a very important characteristic for paper, leather and textile, etc.
Industry: Paper, Textile, Leather

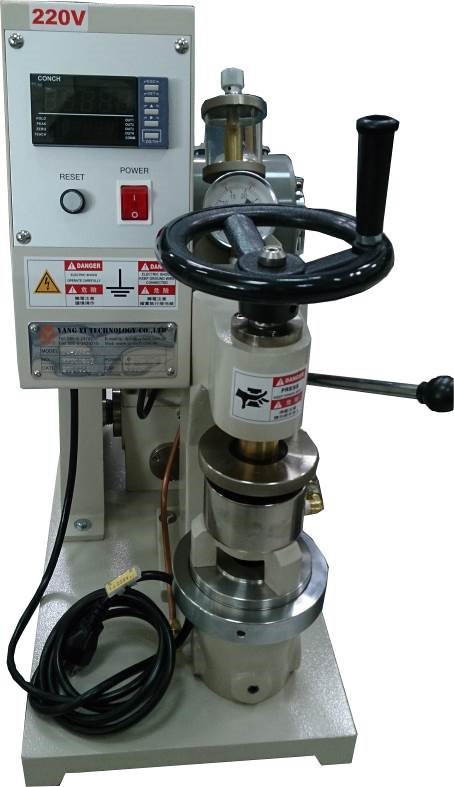

B. Photo reference:
C. Specification:
|
Type |
Low pressure (paper) |
High pressure (Carton) |
Low pressure (Textile) |
|
|
Test speed |
95 ± 5 ml/min |
170 ± 15 ml/min |
98 ± 4 ml/min |
|
|
Pressure display |
Digital LED display 0.01 |
|||
|
Max. Capacity (kg/cm²) |
16, 25, 40, 60, 100, please specify |
|||
|
Diameter of clamping |
Upper plate |
30.5 ± 0.05mm |
31.5 ± 0.05mm |
30.48 ± 0.05mm |
|
Lower plate |
33.1 ± 0.05mm |
31.5 ± 0.05mm |
31.5 ± 0.05mm |
|
|
Gear position |
Pressurization, return |
Pressurization, return |
Pressurization, neutral, return |
|
|
Dimension |
53x36x58 cm |
|||
|
Weight |
60 kg |
|||
