A.  Introduction:

To test the impact endurance of brittle material like: Plastic, Ceramic, Acrylic, and etc. It is a general method to compare the material impact endurance. The method is: use a specified weight of steel ball, adjust to a certain height, free drop and impact the specimen directly, evaluate the damage level to adjust the quality.

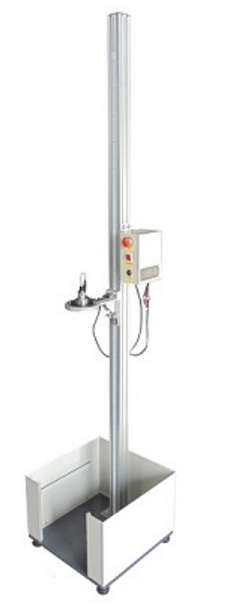

B.  Photo reference:

C.  Specification:

1. Testing height：5~200 cm (adjustable by ruler)

2. Dropping ball control：Controlled by electromagnetic

3. Weight of

4. Steel ball：500g x 1, 1000g x 1 (or indicated)

5. Red laser dot help to pre-determine the dropping point of the steel ball

6. Dimension：46 × 46 × 215 cm

7. Base plate：42 x 29 cm (or indicated)

8. Weight：40kg。

9. Power：220V ,1ψ
