A. Introduction
Pneumatic Specimen Punch of power is pneumatic with hand safety switch design, so there will be no security problem in operation. The Pneumatic Specimen Punch tester with all kind of cutters can quickly cut out various shapes of specimen. Pneumatic Specimen Punch is suitable for paper, rubber, plastic and leather…etc. of all kind of soft material. Pneumatic Specimen Punch can match with all kind of cutter to cut different type of specimen.
B. Appearance

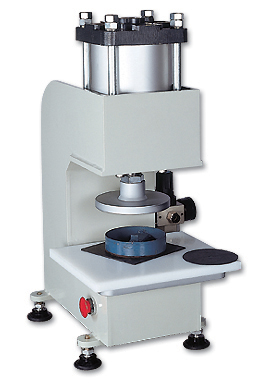

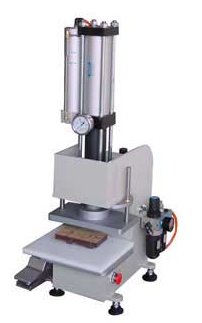

YM-P0502 YM-P0503
C. Specification
Model
YM-P0502
YM-P0503
Material
Rigid plastic (Shore A above 90 degree), fabric
Compression Platen Size
Stroke
103 mm
20 mm
Output force
900 kg
3000 kg
Power supply
Pneumatic (excluding compressor)
3 ~ 6 kg/cm²
Accessory
Cutting board
Optional
Cutter
Feature
Dimension
35 × 42 × 63 cm
42×45×105 cm
Weight
55 kg
80 kg
Rubber, soft plastic (shore A under 90 degree), leather
Upper platenφ145 mm
ectangle platen for option)
Lower platen260 x 230 mm
Upper platen:35 ×16cm
Lower platen:35 x 18cm
※easy to operate, power-saving, time-saving
※Dual switches to increase safety factor
