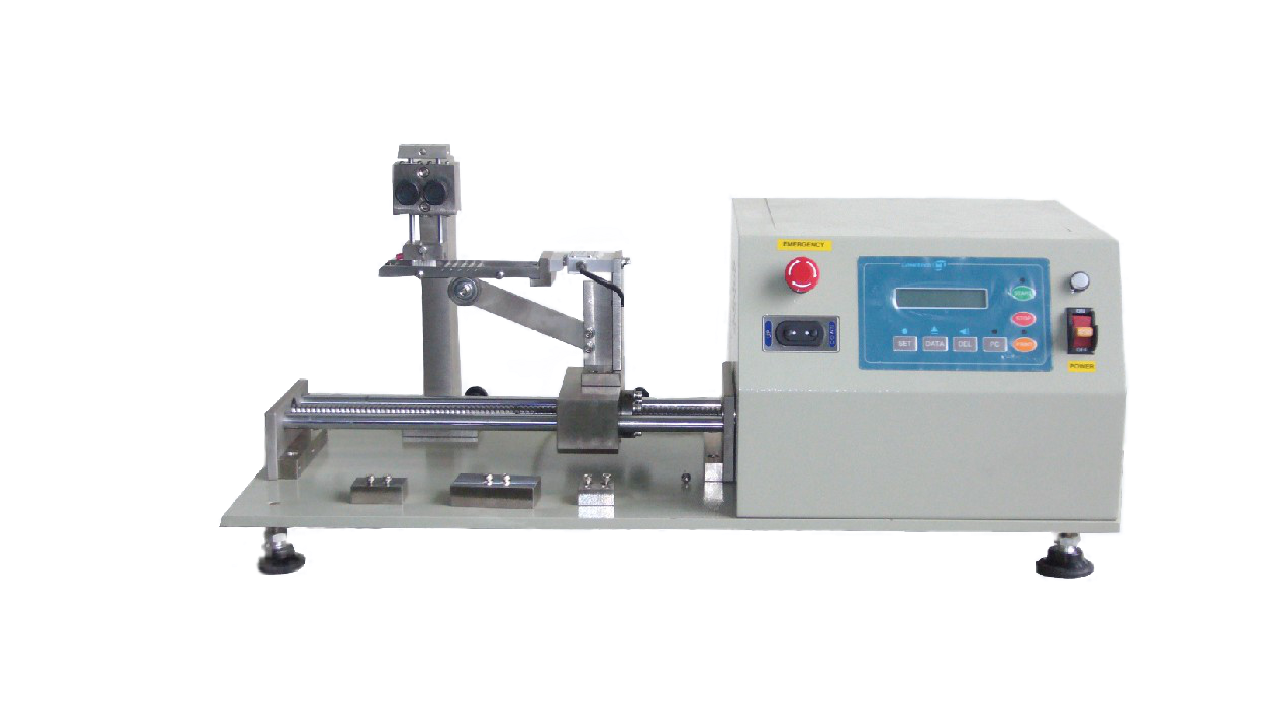

•     Designed by ISO 22254, works with servo motor and loadcell for test
•     Simulate multi cycles of brush to judge the tuft hardness
•     Speed and times can be set with software and strength graph
•     Weight adjustable by gravity; grips are made of stainless steel

1.        Brushing Table : φ3.2mm Rods x 5

2.        Vertical Column : Linear moving by Gravity

3.        Vertical Column weight : 5N(including grip)

4.        Tooth Head Grip

5.        Load Cell : 20N

6.        Brushing Table Speed : 10~50mm/s

7.        Brushing Table Stroke : Max 80mm

8.        Motor : Servo Motor

9.        Power : Single Phase 220V

10.      Software
