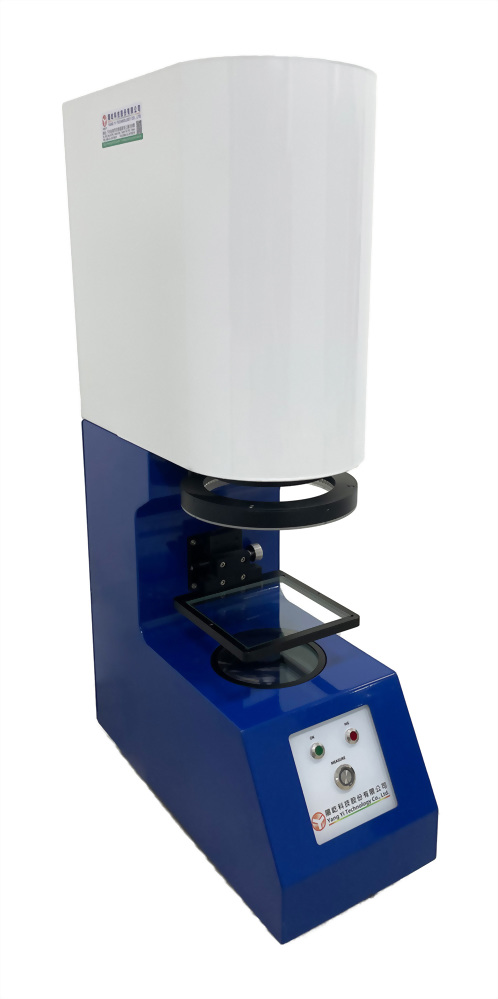

Vertical (Automatic) Optical Image Measurement System |
|
|
Range |
ø100 |
|
Depth of field |
12 mm |
|
Lens |
Telecentric Lens |
|
Light Type |
Led、Parallel Light |
|
CCD |
Gray 20M pixels |
|
Accuracy |
±5 μm |
|
Min. display unit |
1 μm |
|
Repeatability |
3μm |
|
Dimension |
190(H) x 410(W) x 735(D) mm |
|
Weight |
30 kg |
|
Power Supply |
AC 100~240 V |
