1. Description
YM-D0101-Y11 applies to test deformable materials, such as springs, bearings, rubbers and plastic…etc. For the soft materials testing, especially needs high precision testing system and smaller testing load, so we use linear encoder (linear scale) and 1~50gf adjustable force, to make sure the high quality of the precision and repeating precision.

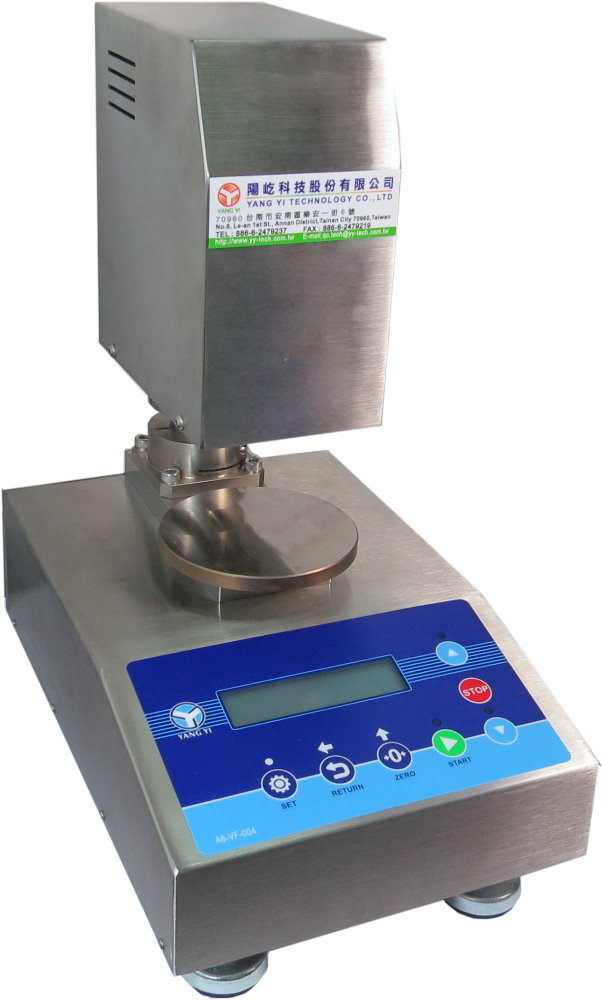

2. Appearance
3. Specification
|
(1)Capacity *: |
0~50mm |
|
(2)Resolution: |
0.0001μm |
|
(3)Accuracy: |
3+(6L /1000) μm |
|
(4)Test Speed: |
2, 4, 6, 8, 10, 12, 15, 20 mm/sec (selected) |
|
(5)Measure Time: |
0~99 sec |
|
(6)50 testing measurement data memorized |
|
|
(7)Linear scale: Renishow RGH41Y |
|
|
(8)Return function, the height could be set up |
|
|
(9)3 or 5 testing range output and display on the screen |
|
|
(10)USB Output (transmission cable, software, optional) |
|
|
(11)Digital I/O function (foot switch or PLC, optional) |
|
|
(12)Separating usage is accepted |
|
|
(13)Min. testing Load: |
5g or appointed |
|
(14)contact points: |
5mm flat, standard. Plastic film (17.5±1kPa, 50mm2), optional. Paper (50±1kPa, 200mm2), optional. |
|
(15)Power supply: 100~240V |
|
|
(16)Dimension: 20 x 30 x 40 cm |
|
|
(17)Weight: 9.4 kg |
|
|
*Maximum is 50mm, the style of the contact points will cause the reduction. |
|
