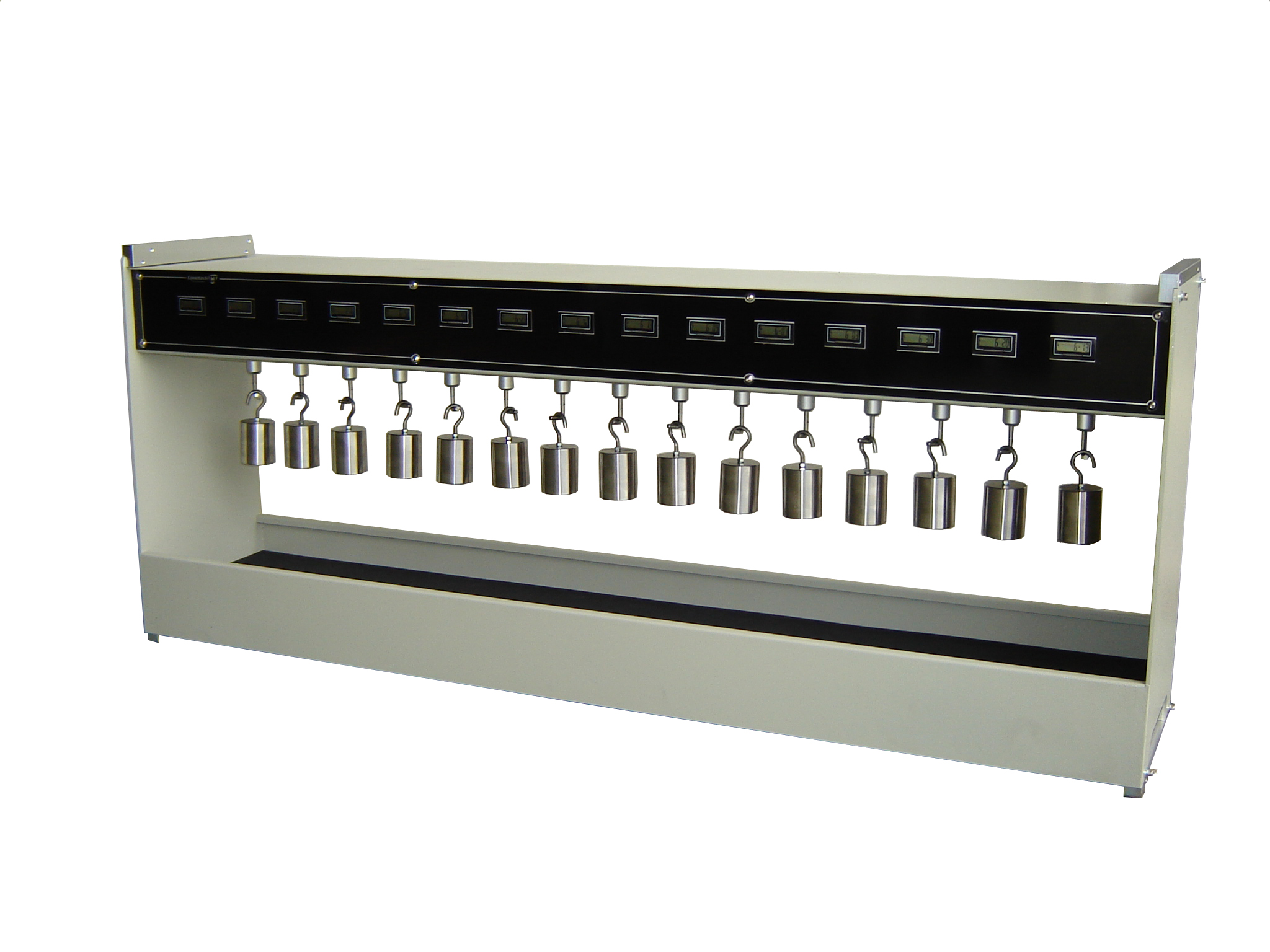

A. Instruction:
Specimen stick test area can use 1/2”x1”or 1”x1”, unified to use 0.45 pound of load scrunch through specimen, hanging counterweight in the lower end of specimen. Timer automatically stops counting after specimen come off from stainless steel plate. If time is up and specimen still sticks without coming off, measure the distance of displacement of specimen.
Industry: Tape
B. Specification:
|
Item |
YM-A0301 (normal temp.) |
YM-A0302 (normal temp.) |
YM-A0303 (normal temp.) |
YM-A0304 (normal temp.) |
|
Testing sets (count individually) |
5 sets |
10 sets |
15 sets |
25 sets |
|
Weight 1kg (or specify) |
5 pcs |
10 pcs |
15 pcs |
25 pcs |
|
Material (SUS#304) |
||||
|
Timer |
Electronic LCD display, automatic retention time, 99999.9 minutes, when tape comes off, it will retention time automatically. |
|||
|
Stainless Steel board |
5 pcs |
10 pcs |
15 pcs |
25 pcs |
|
Electrical Control |
X |
X |
X |
X |
|
Temperature |
X |
X |
X |
X |
|
Weight(kg) |
37 |
45 |
75 |
75 |
|
Dimension(WxDxH) (cm) |
55x26x62 |
93x26x62 |
142x28x60 |
121x28x62 |
