A.  Introduction:

Press slight pressure on between objects and PSA (Pressure-sensitive adhesive) tapes to have short contact, PSA tapes to objects adhesion effect is called the initial adhesion. Let the steel ball roll over the tape placed on the common slanting panel board 3°, valuate its initial adhesion according to the size of the maximum ball that the given tape length can stick as evaluation.

Industry: Tape

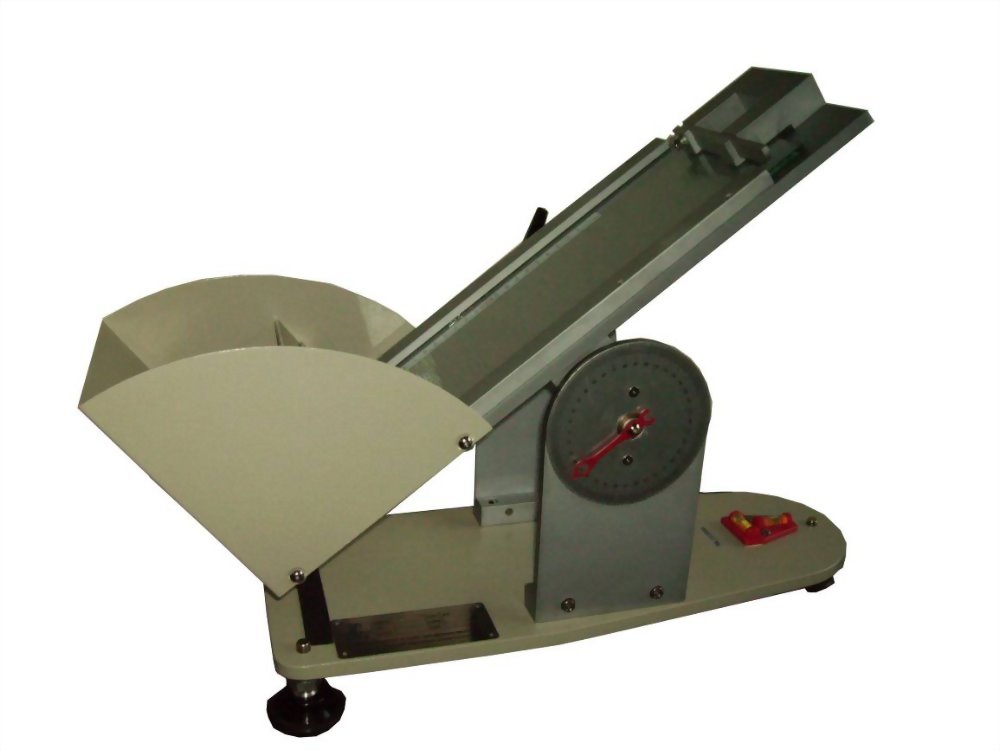

B.   Appearance:

Single Group Type	Four Groups Type

C.   Specification:

1.       Testing Angle: 20° ~ 40°, adjustable, (Generally it’s 30°)

2.       Run-up distance: 100mm

3.       Steel ball: No. 2”~32”, 4 sets

4.       Dimension: 55 ×30 ×30cm

5.       Weight: 35kg
