A.   Introduction:

   Portable design and without electricity that can proceed with test. No time and space limitations, mainly used on the spot measurement, inspect textile water-resistance ability.

Industry: Textile

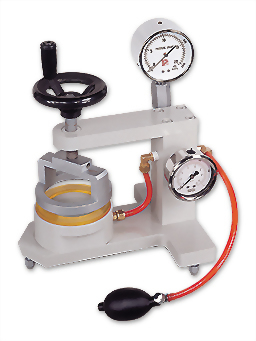

B. Appearance:

C.   Specification:

1. Sample size: 12x12cm

2. Test area: 9.4cm

3. Gripping method: Manual

4. Pressure range: Switchable, 0-2000 mmH2O(0.2 kg/cm2)/0-10000 mmH2O(1.0 kg/cm2)

5. Dimension: 35x20x32cm(W×D×H)

6. Weight: 5.9kg

Note: 1 mmH2O = 1 mmAq；10,000 mmH2O ≒1 kg/cm²
