A.  Introduction:

The YM-E0301 Discoloration Meter possesses oven, aging and anti-yellowing functions. A 300W UV lamp install inside the oven to simulate the fading or discoloring of sample caused by radiation of sunlight or inside high temperature containers during transportation.

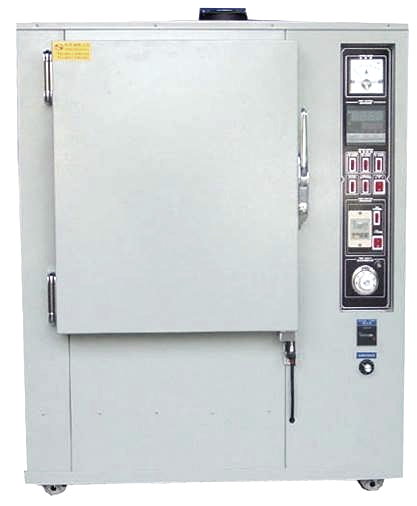

B.  Photo reference:

C.  Specification:

1.   Temperature range：Normal +5℃ ~ 260℃ (Generally 50℃)

2.   Control method：Electric Digital temperature controller (With dual thermo protector)

3.   Temperature display：0.1℃。

4.   Heating method：Hot air recycling

5.   Timer：0~999Hours, manual setting, digital display, automatically stop heating

6.   Rotary speed of turning table：3 r.p.m. (Adjustable)

7.   UV irradiance level：Type of Bulb OSRAM 300W. With counter for bulb's life. Life cycle for each bulb is about 1,000hours.

8.   Accessories：Two pieces of shelf. Height adjustable

9.   Internal material：Stainless Steel SUS #304

       Outer material :Professional Pre-painting

10. Dimension：93×58×117cm (W×D×H)

11. Voltage：Single phase 220V/50Hz or 60Hz

12. Weight：100 kg。
