Introduction:
The program included functions as below , High Temp.、Low Temp.、Constant temp. / humidity , and clod / hot circle .
LCD display controller – It could be set single temp、program circle、time、cycle frequency and multi-program memory…etc！
Simulated industrial products of material might cause break down , not working normally , the quality might go bad under the changing of temperature and humidity.
|
：
◎Rise/Decrease temperature rate require ◎Customized size ◎Test function addition ◎Separate type design |
|
 |
|
|
Temperature & Humidity ranges |

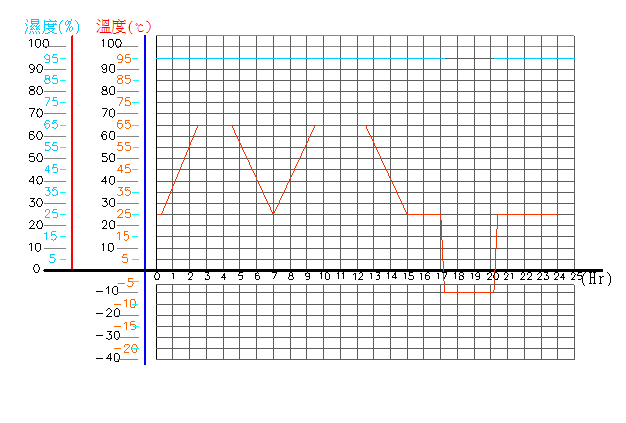

PROGRAMMABLE RAPH(REFERNCE) |
SPECIFICATIONS
|
Model |
A |
B |
C |
D |
E |
|||
|
Inside Dimensions(W×D×H) cm |
40*40*50 |
50*50*60 |
50*60*75 |
60*80*85 |
100*80*100 |
|||
|
Outside Dimensions (W×D×H) cm |
107*72*135 |
117*82*145 |
117*92*160 |
127*112*170 |
167*112*185 |
|||
|
Model |
1 |
2 |
3 |
4 |
5 |
|||
|
Temperature Range |
0~150℃ |
-20~150℃ |
-40~150℃ |
-60~150℃ |
-70~150℃ |
|||
|
HUMIDITY RANGE |
10 ％~ 98％RH |
|||||||
|
CONTROLLER |
S |
SP |
UP |
UP-R |
||||
|
Single Step |
Programmable |
Programmable |
Programmable |
|||||
|
ITEM |
Specification |
|
Temperature & Humidity Constancy |
±0.3℃；±2﹪RH |
|
Temperature & Humidity Uniformity |
±1℃；±4﹪RH |
|
Exterior/Interior Material |
SUS#304 Stainless Steel |
|
Insulation |
Silicon Packing, PU & Glass Wool |
|
Eating System |
Stainless Steel Heat Register |
|
Humidity System |
Steam Humidifier |
|
Refrigeration System |
Compressor & Double Stage Refrigeration |
|
Controller System |
Touch Screen Controller; P.I.D.+S.S.R. Precise Temperature Control |
|
Other Device |
Vacuum Glass Window; Shelves; Wheel |
|
Protection System |
Over-heating, Under Low Water, Over-load protection |
|
Power Consumption |
AC 1/3 PHASE；220/380V；50/60Hz |
|
Optional Accessories |
RECORDER、Reverse Osmosis |
