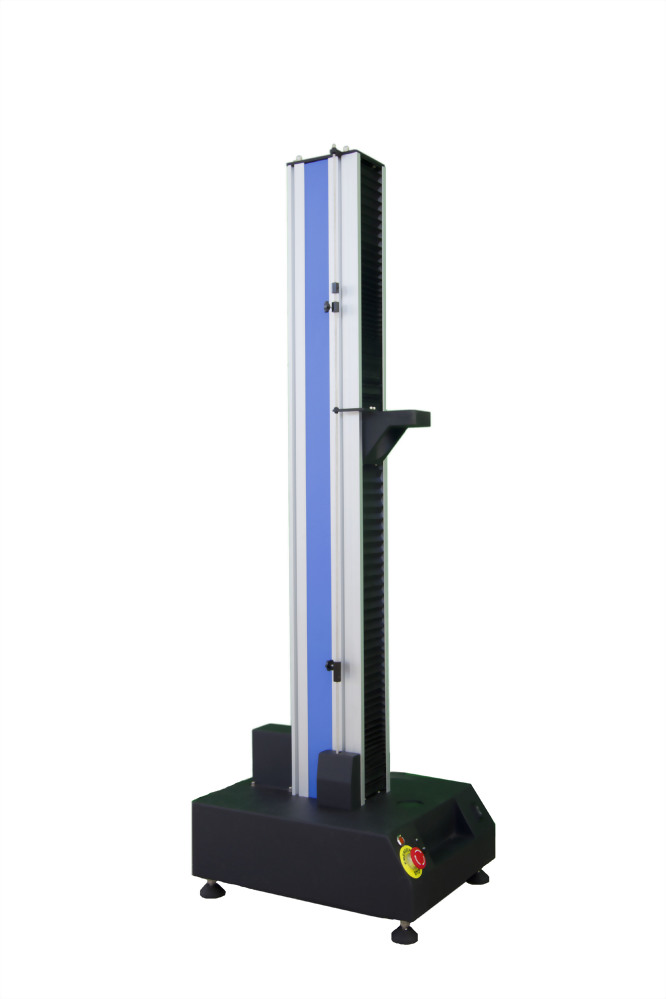

Whole series equipped with high efficient servo motor and accurate ball screw transmission.
Self-design controller and humanized software. Ensure every test has the same accuracy.
Comply with ASTM, ISO, JIS, EN, GB, BS, CNS and other International Standards.
Satisfy the inspection and development demand for metal, nonmetal, fasteners, rubber/plastic, textile, paper, plastic tapes, electrical components, panels and relevant industries.
2 years warranty.
|
Loadcell |
||
|
|
 |
|
|
YS 1 ~200 kN |
YS 5~2000 kN |
|
Regarding different test methods, we provide three different stroke machine.
Shorter (500mm)/ Standard (900mm)/ Higher (1,300)
|
Capacity |
5kN (500kgf) |
|
Stroke |
500/900/1,300 mm (exclude grips) |
|
Space |
Ø140mm |
|
Load Resolution |
1/10,000 (Max 1/200,000) |
|
Stroke Resolution |
0.001mm |
|
Motor |
AC Servo motor |
|
Speed |
0.015~2000 mm/min |
|
Width |
400 mm |
|
Depth |
500 mm |
|
Height |
1,060/1,510/1,900 mm |
|
Weight |
60/70/80 kgf |
|
Sampling Rate |
500(Max.) |
|
Power Supply |
1Ø，220V，5A |
Software
Video
|
Grip & Fixture |
|||
|
Fastener Test |
|||
|
|
|
|
|
|
Withdrawal/Pull through
|
Bolt Tensile/Proof Load |
Tapping Screw Tensile
|
Shear Force Fixture
|
|
Wire Test |
|||
|
|
|
|
|
|
String Tensile
|
High-Strength Wire Grips
|
Wedge Grips |
Seismic Fixture |
|
Plastic & Rubber Test |
|||
|
|
|
|
|
|
3-Point Bending |
Tearing |
Rubber Tensile |
Plastic Tensile |
|
Adhesive & Peeling Test |
|||
|
|
|
|
|
|
180° Peel
|
180° Peel
|
90° Peel |
90° Peel
|
|
|
|||||
|
Clothing Test |
|||||
|
|
|
|
|
||
|
Webbing Tensile |
Tensile (Wave Grip) |
Positive Pressure |
Webbing |
||
|
Pneumatic Grips |
Hydraulic Clamp |
||||
|
|
|
|
|
||
|
Spring Test |
Others |
||||
|
|
|
|
|
||
|
Pull Spring |
Compression Spring |
Friction |
4-Point Bending |
||
|
Others |
|||||
|
|
|
|
|
||
|
Clamp Grip
|
尖嘴夾 |
Puncture |
電線端子 |
||
