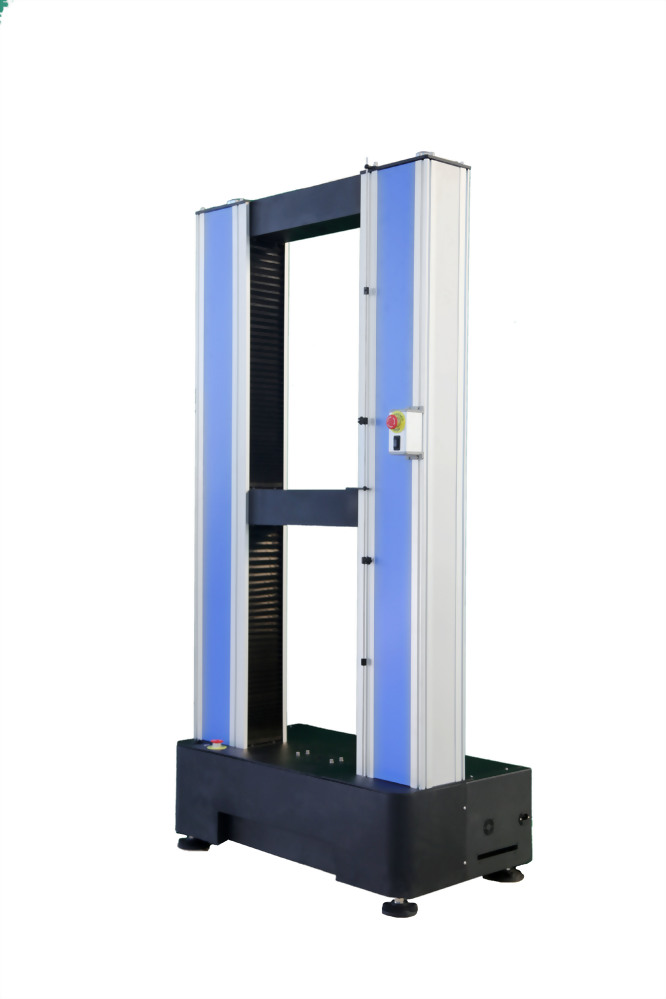

YM-H45 Universal Material Testing Machine
|
||
|
|
||
Whole series equipped with high efficient servo motor and accurate ball screw transmission.
Self-design controller and humanized software. Ensure every test has the same accuracy.
Comply with ASTM, ISO, JIS, EN, GB, BS, CNS and other International Standards.
Satisfy the inspection and development demand for metal, nonmetal, fasteners, rubber/plastic, textile, paper, plastic tapes, electrical components, panels and relevant industries.
2 years warranty.
【Two operation space optional】
|
Loadcell |
||
|
|
 |
|
|
YS 1 ~200 kN |
YS 5~2000 kN |
|
Regarding different test methods, we provide two different stroke machine.
Standard (1,835mm)/ Higher (2,035mm)
|
Capacity |
50kN (5,000kgf) |
|
Stroke |
800/1,100 mm (exclude grips) |
|
Space |
Ø500mm |
|
Load Resolution |
1/10,000 ~ 1/200,000 |
|
Stroke Resolution |
<0.05mm |
|
Motor |
AC Servo motor |
|
Speed |
0.005~500 mm/min |
|
Width |
1,010 mm |
|
Depth |
570 mm |
|
Height |
1,885/2,085 mm |
|
Weight |
700/750 kgf |
|
Sampling Rate |
200~500(Max.) |
|
Power Supply |
1Ø，220V |
