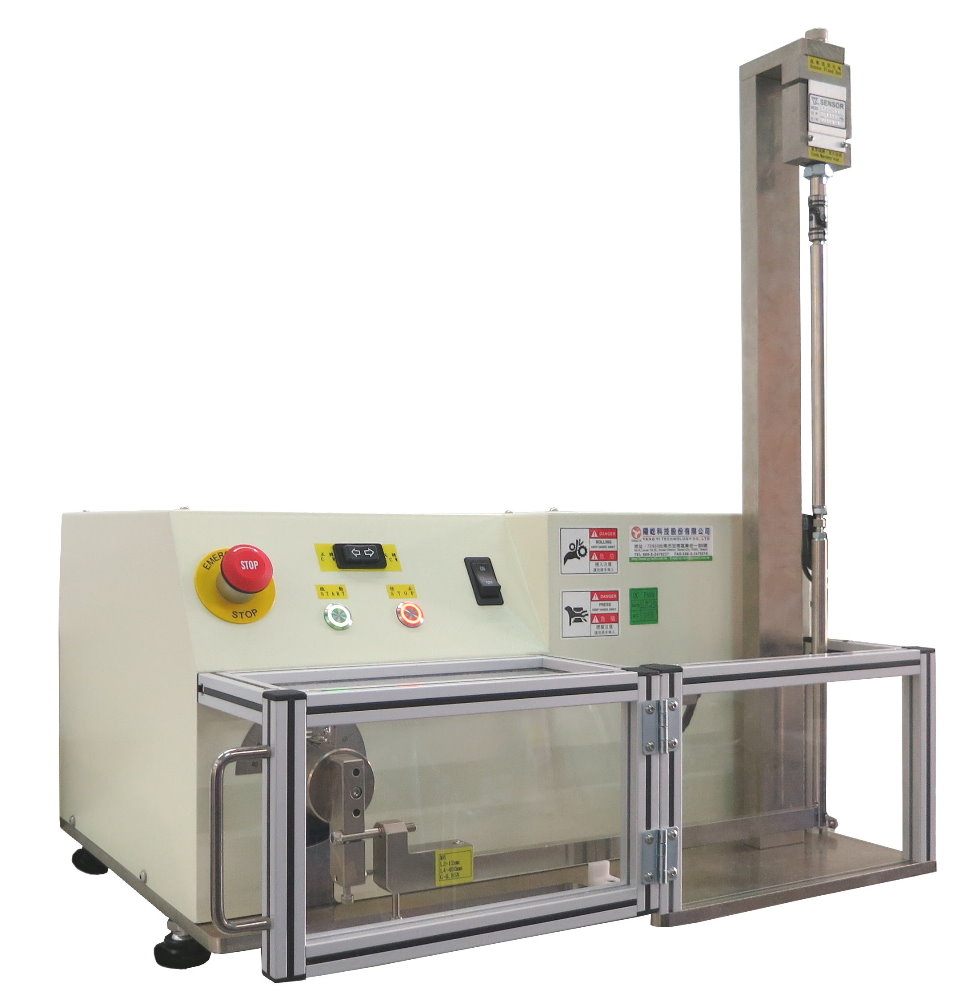

Fastener Bending Tester

●Timber wood fastener for EN409, EN14592

●Stable speed by servo motor equipped with accurate reducer

●Different grips for different outer diameter fasteners

●Satisfy 16mm diameter of screw or nail, torque up to 200 Nm

●Analysis software to auto analyze various data and calculation

●Multi-curves comparison, quick zoom in/out, easy operation

1.    Max. yield moment: 100N-m / 200N-m

2.    Rotary speed: 0.1~10 rpm

3.    Fastener diameter range: 3~16mm ( 200N-m for M16)

  Fastener length at least is 8D. 10D will be better for operation.

4.    Motor: AC Servo motor

5.    Dimension: 580x530x730(mm)

6.    Weight: 65kg

7.    Power supply: 1ψ, AC 220V, 10A

8.    2-year warranty (differ from other brands)

9.    Comply with  EN409  / EN14592

10. Software 1 set, equipped a USB transmission cable

11. Critical inspection before shipment and a calibration report attachment
