YM-T Vertical Universal Torsion Testing Machine
|
|
|
|
|
Bench Type |
Floor Type |
Customize |
• Max. 600mm length timber screws for torsion test.
• Capacity 200Nm, satisfy screw breaking test.
• Different dead weights to simulate the real situation.
• Work with servo motor and precision reducer to satisfy demand.
• 5kgf basic weight of central axis.
• Motor control the lift, easy for operating.
• Recording the depth through linear scales.
• Comply with EN 14592, EN 15737, EN 10666, and ISO 2702.
• 2 years warranty.
|
Software |
|
|
|
|
|
Torsional Resistance |
Breaking Test |
|
|
|
|
Test Report |
Programmable Test Settings |
|
Specifications |
||||
|
Model |
YM-T11 |
YM-T15 |
YM-T22 |
|
|
Type |
Manual Bench Type |
Standard Floor Type |
Higher Floor Type
|
|
|
Capacity(N-m)
|
10 |
50 |
200 |
|
|
Velocity
|
1000rpm |
Max. 200rpm |
Max. 200rpm |
|
|
Screw Length
|
150mm |
150mm |
300mm |
600mm |
|
Load Precision
|
< 1% |
|||
|
Resolution
|
< 0.001° |
|||
|
Reducer
|
N/A |
Low Backlash Planetary Reducer |
||
|
Lift |
Manual |
Motor Control |
||
|
Weight |
Dead Weight |
|||
|
Size (mm) |
250x350x700(H) |
590x450x1200(H) |
850x750x1,860(H) |
850x750x2,300(H) |
|
Weight |
50kg |
100kg |
250kg |
350kg |
|
Power Supply |
1Ø，220V |
1Ø，220V |
3 Ø，220V |
|
*The above specifications are standard, and for any special requirements, customization is available
*Data acquisition system with high sampling frequency. (Optional)
|
Optional Accessory |
|||
| Instruction | Photo | Instruction | Photo |
|

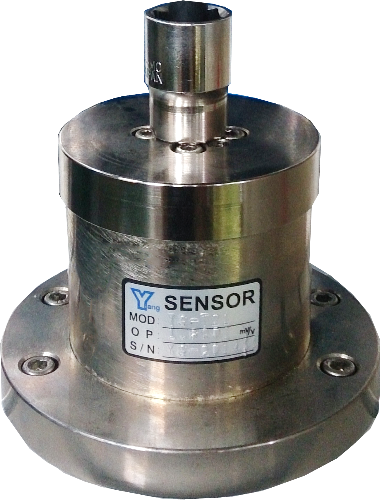

Static Torque Sensor Standard square output for various sockets |
 |
Weight 0.5、1.0、2.0、5.0、10.0kgf
0.5、1.0、2.0、5.0、10.0lbf
|
 |
|

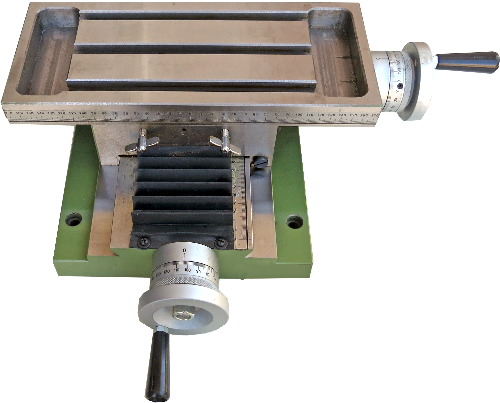

X-Y manual Table Easy operation by scale |
|

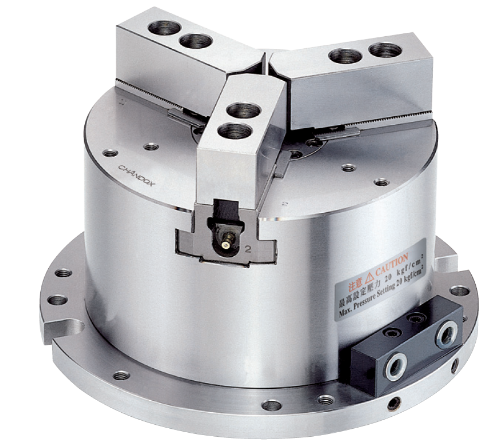

3-claw chuck For breaking test |
|
|

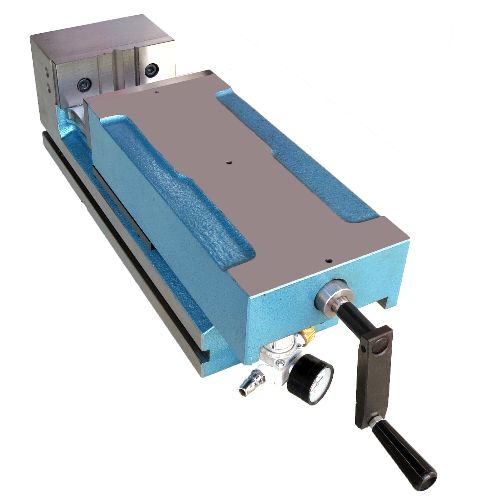

Pneumatic Vice 3000 kgf for clamping force |
|
Linear scales for Z axis Depth measure, resolution 0.005mm |
|
|
Came out-resistant socket Avoid Bit came out during the test |
|

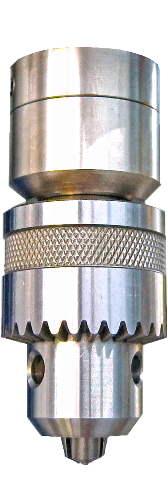

Drill chuck For bits or bits holder |
|
