Horizontal Universal Torsion Testing Machine

Horizontal Universal Torsion Testing machine permits the measurement of the 4 quantities: total torque, ISO 16047 head friction torque, clamp force, and ISO 2320 prevailing torque without influence of one quantity by one of the others.
With this configuration all important parameters of screwed joints can be detected and evaluated by standard, like demanded by international standard. The software can show axial force, torque, and friction. Beside, the functions including statistics and data output to Excel.
Grips including Slot(Flat), Phillips, Pozidriv(ISO 8764, DIN 5260), Hex, and Torx(ISO 10664) supply you to choose when you want to do breaking test. If these grips could not satisfied your needs, we also supply customization service for you at any time.

200~2000N-m

Model : YM-T (Horizontal)

Q'ty :

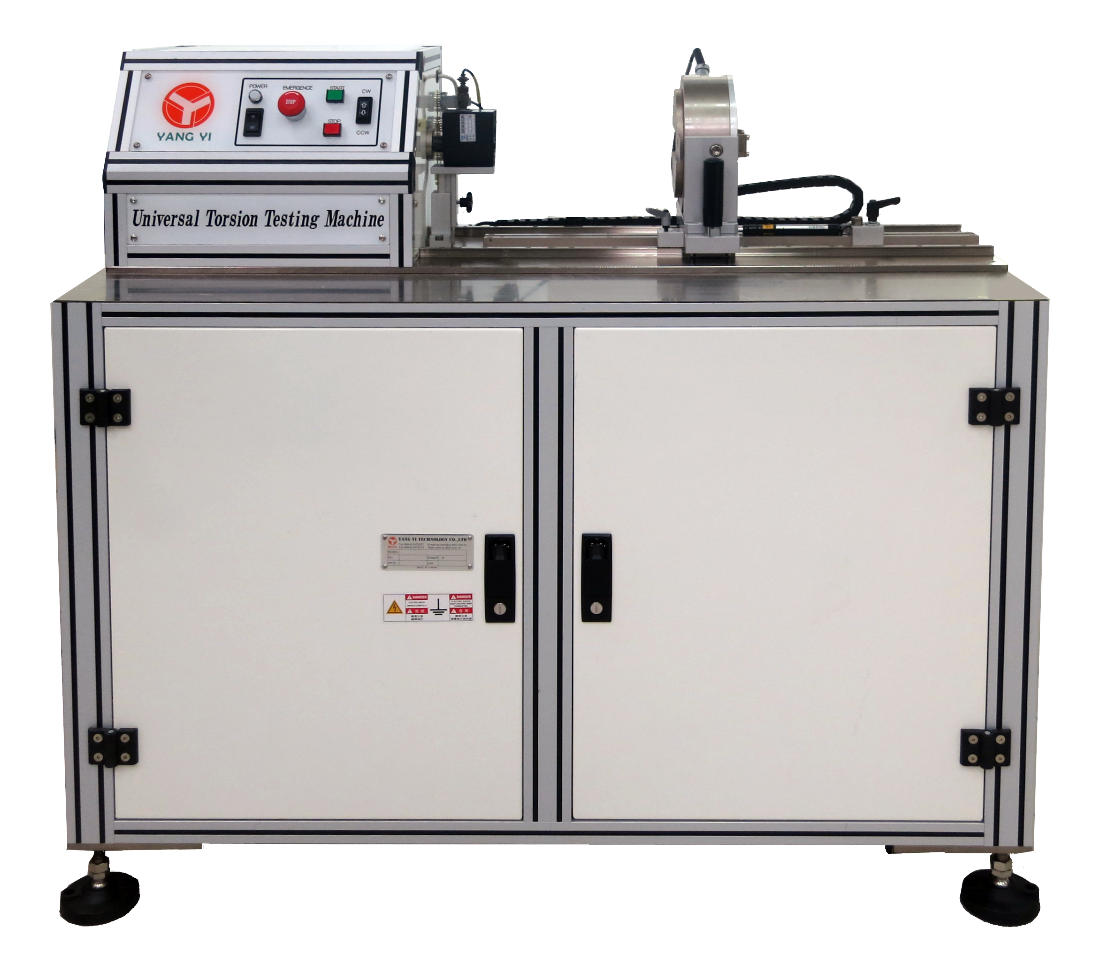

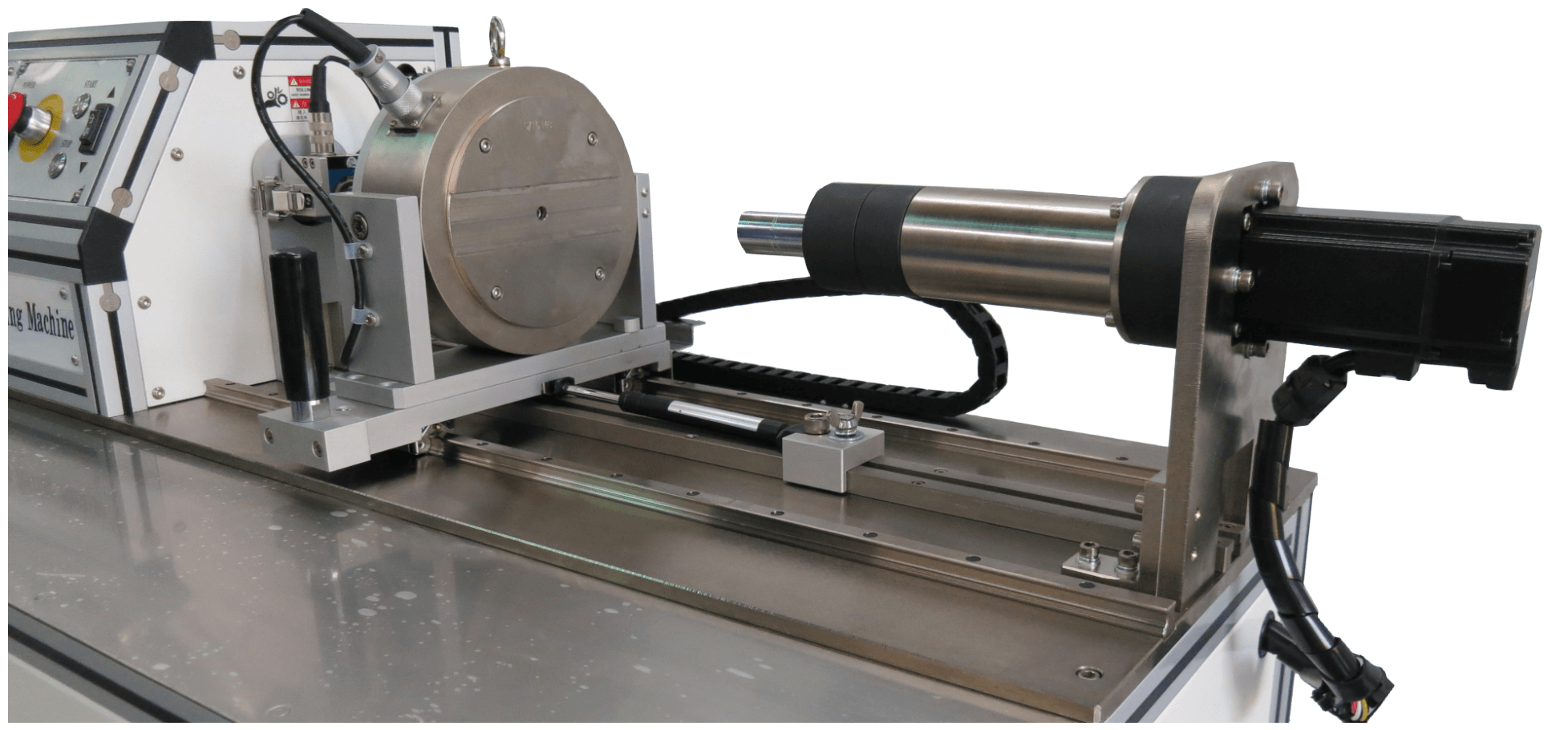

YM-T Horizontal Universal Torsion Testing Machine

●Torque and life tests for material, component, and hand tools

●Professional in bolts, nuts torque, tension, friction

●Prevailing torque test for locking nut

●Torque tests to satisfy every automobile industries

●High precision, efficiency controlling system

●Humanized and multi-functions software

●Servo motor and high precision reducer

●Aluminum-extrusion working table to store accessory

●Satisfy ISO 16047, ISO 2320, ASTM, JIS, GBT, SAE and others related to automobile industries.

Windows System
Humanized interface with large data display & button
Powerful analysis functions to meet standards
Build database according to various samples
Satisfy various torsion & fatigue test by programmable test procedures
Flexible chart functions, zoom in/out, multi-curves
Print out with tables, curves and informations
Metric and Imperial units optional
Data, graphic and table output to Word/Excel/PDF

Specifications
Model	YM-T22	YM-T25	YM-T32	YM-T35	YM-T41	YM-T32
Type	Horizontal					TC Bolt
Capacity(N-m)	200	500	2000	5000	10000	2000
Gear ratio	10	10	38.5	66	88	38.5
Velocity(rpm)	200	200	50	25	20	50
Precision	< 1%
Resolution	<0.001°
Reducer	High Torque and Low Backlash Planetary Reducer
Servo Motor(kW)	3	5.5	5.5	11	15	5.5
Data rate (Hz)	200
Space(mm)	Ø 200	Ø 250	Ø 350	Ø 450	Ø 450	Ø350
Stroke(mm)	250	300	500	500	500	400
Dimensions (WxDxH)(mm)	1200x750x1250	1500x750x1250	1800x750x1250	2100x900x1400	2700x1200x1500	1500x750x1400
Weight(kgf)	180	250	360	600	1500	600
Power Supply	3 Ø 220V	3Ø 220V	3Ø 220V	3Ø 220V	3Ø 220V	3Ø 220V

Accessory

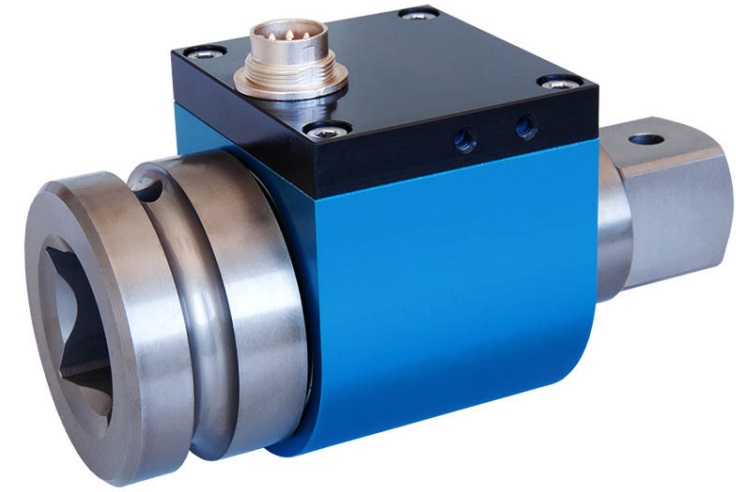

Rotary Torque Transducer

20、50、100、500、1000

2000、5000、10000N-m

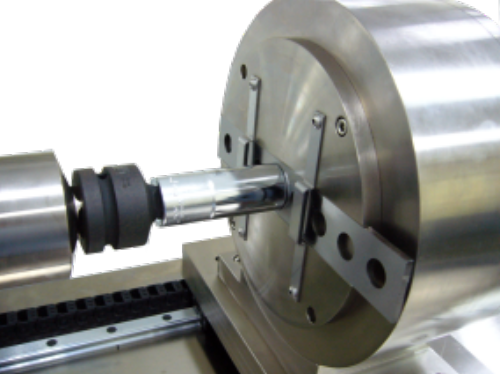

Tension/Torque Transducer

50~500kN / 20~5000N-m

Various Socket

Size : 5.0~65mm
1/8”~2-1/2”

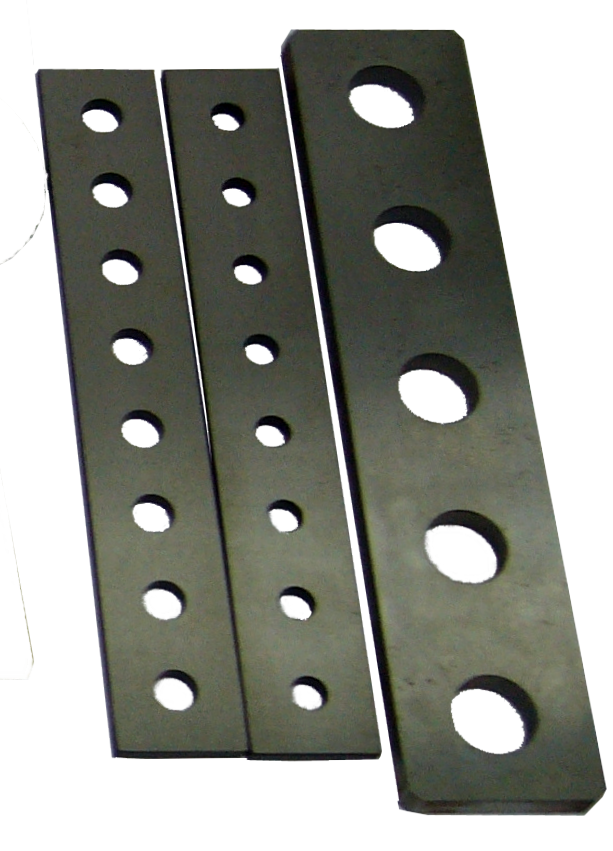

Washer sheets

Range: M3~M36

Width: 40、60、90mm

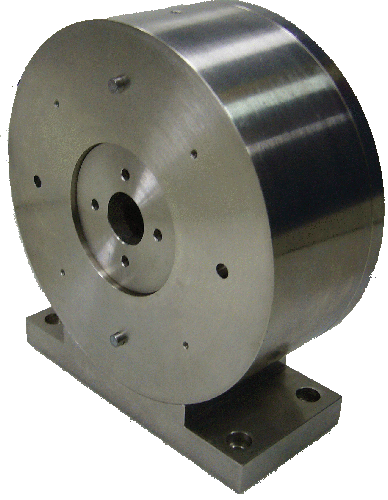

Three-Jaw Chuck
Range: Diameter 2~30 mm

Long Washer

Range: M3~M42

Square Rod

Accessory
Rotary Torque Transducer 20、50、100、500、1000 2000、5000、10000N-m		Tension/Torque Transducer 50~500kN / 20~5000N-m
Various Socket Size : 5.0~65mm 1/8”~2-1/2”		Washer sheets Range: M3~M36 Width: 40、60、90mm
Three-Jaw Chuck Range: Diameter 2~30 mm		Long Washer Range: M3~M42 Square Rod
