A. Introduction:
This tester driven by pneumatic cylinder, single wing structure, only takes a small space to operate, apply to dropping impact test of the package material, such as cartons, leather cases, electric equipment…etc. It is indispensable for the companies who need the dropping test with their electric products, the accessories and others. The results of the testing will assure the safety of the dropping impact when the products are being delivering.

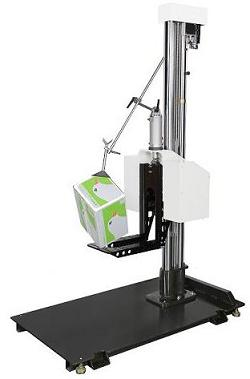

B. Photo reference:
C. Specification:
1. Testing Height: 30~130cm adjustable, automatically upward; for descend, there is distance setting device and scale instruction, the speed is approximately to 2000mm/min.
2. Dropping holder size: 27 ×47cm (W×D) for standard, range of the measuring height: 30~130 cm.
3. Max. Load capacity of dropping holder: Approx. 60kg
4. Base: 85x150cm (W×D) for standard.
5. Max. Dimension of package testing items: 80x80x80(H) cm (diamond-shaped lines or diamond-shaped corners are over80cm, please specify).
6. Dropping methods:
I. Electrical button type, pneumatic cylinder driving to drop down.
II. Electrical button type, pneumatic cylinder type returns to the original position.
III. The original speed of the holder should be faster than the free-falling objects, to not let the testing items change with an included angle. For increasing the testing accuracy.
7. Accessories: the pneumatic tester, diamond-shaped line and the corner grips. The testing items can be adjusted to drop with stable angle.
8. Feature:
I. This tester is pneumatic dropping style with single wing, saving operating space, no need to use wrench to go back to the original position.
II. The structure is very stable and rigid.
III. The motor has brake, to adjust the testing height which has been set up.
IV. Transmission uses screw lead, the speed of rise and descend is fast,
for increasing the efficiency.
9. Dimension: 85×150×230 cm(W×D×H).
10. Weight: 300kg.
11. Power supply: Single phase, 220V, 50 or 60 Hz,8A.
