A. Introduction:
Standard super daylight can simulate various illumination conditions; provide an objective environment for users that can proceed with specimens color comparison.
Color’s determination on different light source environments has various color effects, YM-W0102 SUPER LIGHT provide D65 standard artificial daylight, UV fluorescent reaction light source, A yellow light source, etc. main and common light source environments. (Other light source also can be selected), this Color Assessment Cabinet tester can accumulate light source using time that can be as light tube lifetime basis.
A wide range of accessories such as grips, fixtures, chambers and high travel extensometers are available to match most applications and test samples.
Super Daylight confirms to JIS-Z8724, CIE-30 Standard

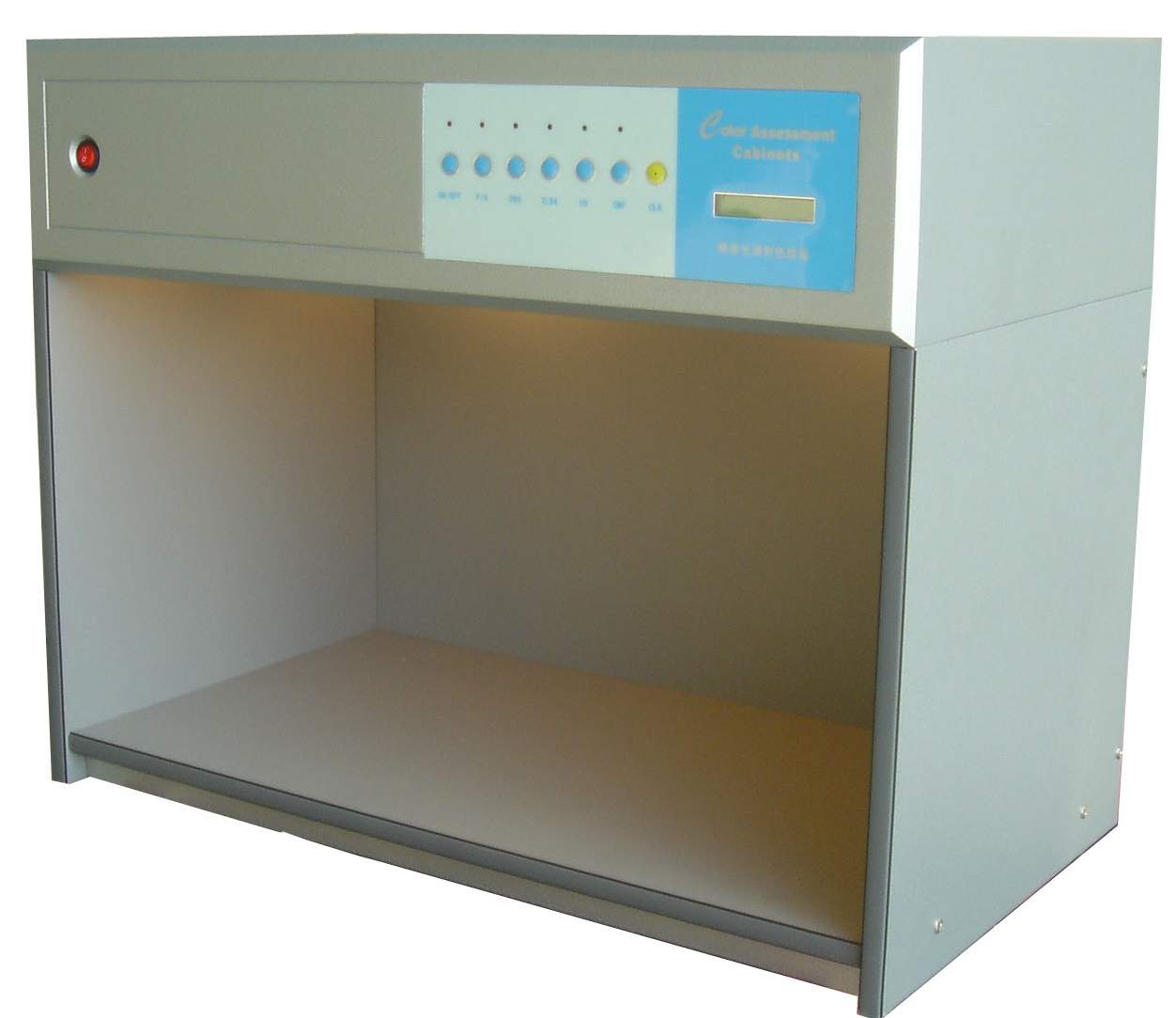

B. Photo reference:
C. Specification:
|
Model |
YM-W0102 |
||||||||||||||||||||||||||||||
|
Inner chamber |
67×37×35㎝ |
||||||||||||||||||||||||||||||
|
Light source |
|||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||
|
Control method |
Complete-electronic type starter with high frequency, Users don’t have to wait for start. |
||||||||||||||||||||||||||||||
|
Timer |
5 Sets. For record the using of each light. 5. Often turn and off light easily cause consume. Suggestion: Replacing light tube when reach 1000 hours. |
||||||||||||||||||||||||||||||
|
|
Inner side of chamber painted with Optical-Flat painting. Easy to read. |
||||||||||||||||||||||||||||||
|
|
With partition lampshade that light source can spread evenly, light spot is not easy centralize. |
||||||||||||||||||||||||||||||
|
Dimension |
72×42×58㎝ |
||||||||||||||||||||||||||||||
|
Weight |
25㎏ |
||||||||||||||||||||||||||||||
