A. Description:

This tester is for test the discoloration condition and abrasion-resistant of painting surface, use white cotton cloth、eraser、steel wool to test the abrasion-resistant of specimens.

B.  Photo reference:

C.  Specification:

1.    Loading Weight：50g,100g,200g,300g,500g,1000g

2.    Testing height：10~100mm, adjustable

3.    Testing speed：1~100 CPM

4.    Testing Head： a)ψ6.35mm sandpaper  b)ψ16mmcotton  c)ψ16mm steel wool (optional)

5.    Testing Head seat：Aluminum grips

6.    Specimen size: Width is 20-200mm, Max thickness is50mm( grip can be adjust according to different specimen.)

7.    Control panel： 0～99999999, Auto stop when test complete

8.    Dimension：70×35×45 cm。

9.    Weight：46 kg。

10. Power supply：100V-240V

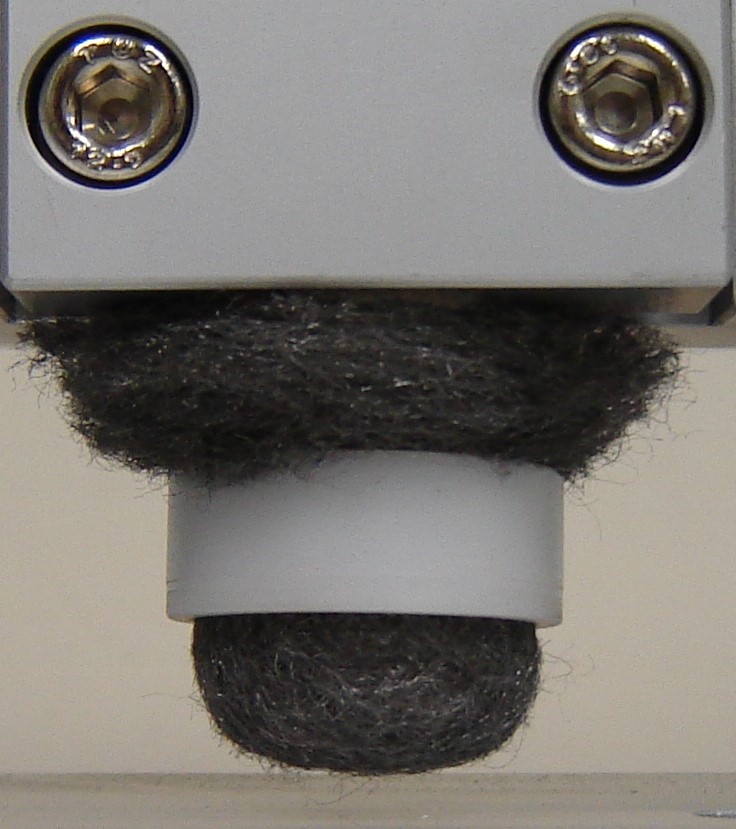

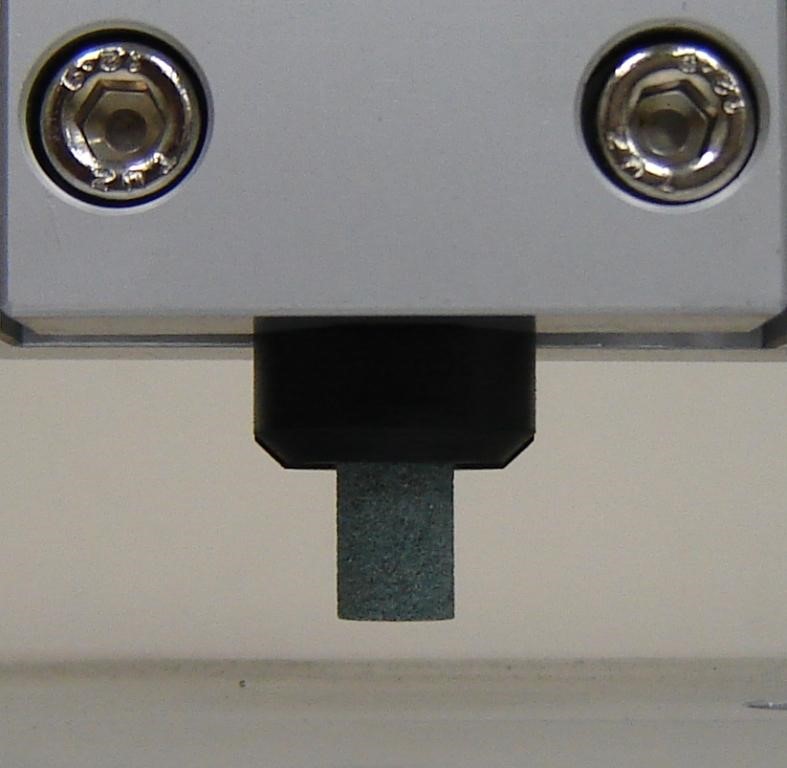

D. Abrasion Head Type

Sandpaper	Cotton	Steel Wool
