A. Instruction

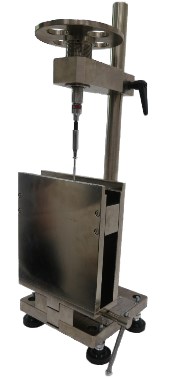

This tester is made for torsional test (used with a torque wrench). It is also applied to the Hydrogen embrittlement test.
B. Standard
|
|
 |
 |
 |
|
|
Higher(customize) Available 200 mm screw
|
Jigs base
|

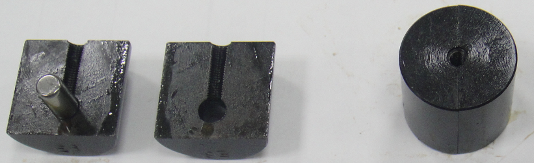

Mold (split collet) (Left: spate; Right: combine)
|
C. Specification
1. Base
2. Height adjustable stand
3. Steel plate stand (50x150 mm)
4. Max. Screw-in length: approx. 40mm (Custom made)
5. Upper torque wrench size: 3/8”square female-base
6. Lower socket size: 3/8”square base male-base
Note:
1.
Torque wrench is an additional accessory.
2.
Steel stand can be custom made.
3.
Exclude the bits, sockets and split collet.
